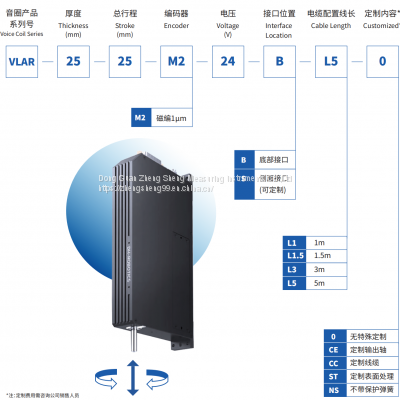

Voice Coil Linear Rotary Actuator VLAR-25-25

Product Details

Product Description

Product Description
Technical parameters
Peak thrust ：15N
Continue to push ：8N
Total trip ：25mm
Force repetition accuracy :±5g
The force constant : 6.67N/A
Maximum torque : 0.072 N.m
Maximum speed : 2000rpm
Linear stroke resolution ：1μm
Position repeat positioning accuracy : ±5μm
Rotary encoder resolution :0.02°
The mechanical parameters
The overall quality ：1020g
Move the quantity :280g
size :180mm×100mm×25mm
Runtime environment
Working voltage ：24V DC±10%
Sustained current ：1.2A（A straight line） 1.0A（rotating）
Peak current ：2.2A（A straight line） 2.5A（rotating）
Protection grade :IP40
Recommended Work Environment :0~40°C，85%RHThe following
In line with international standards ：CE,FCC,RoHS

---
