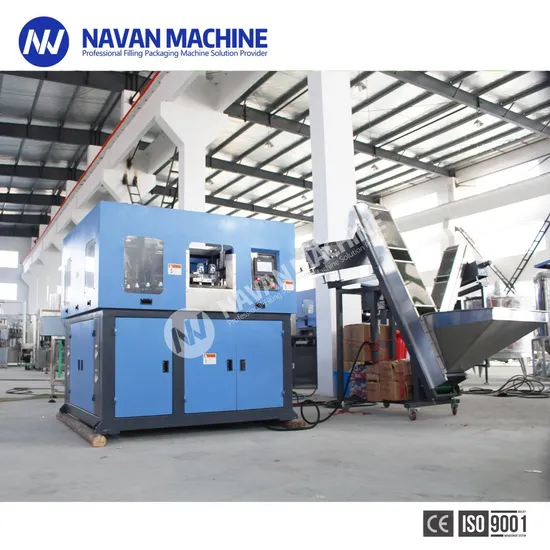

Professional Automatic 4-Cavity Plastic Bottle Making Machine

Product Description

Automatic Blowing Machine(For Water, Oil, Juice, Carbonated drink bottles)
We produce NB series of fully automatic, semi-automatic PET blow molding machines and other 0.1L-2L Full Automatic Blow Molding machines with output from 1000 to 8000 bottles per hour, which can satisfy different customers' requirements. Our products are Certificated by CE. In order to meet customers' specific requirements, factory offers product capacity ranges from 50ml to 30L, suitable for all kinds of PET bottles that contain mineral water, carbonated beverages, fruit juice, teas, edible oils cosmetics, detergents, wide-mouth jars, etc. Navan Machinery is an ideal choice for large beverage factories, mineral water companies, and PET packaging enterprises.

Automatic Stretch Blow Moulding MachineTechnical Parameters:
Number of Cavities	1,2 , 3 , 4 , 5, 6, 8 , 9 , 10 , 12
Filling speed:	1,000-24,000BPH (500ml)
Type of Bottle	250ML 330ML 355ML 500ML 750ML PET Bottle
Bottle height	150-340(mm)
Bottle diameter	Φ50-110(mm)
Bottle Material	PP , PET
Blowing type	Stretch Blowing
Filling product	Bottle carbonated dirnk , wine , whisky , Vodka , Beer , Kvass, kombucha , fruit juice , flavor juice , fruit juice with pulp ,Mineral water, purified water, drinking water, flavor water , soda water , alkaline water , spring water and low alcoholic drinks.

Product Description

	Using an advanced microcomputer control system, stable performance. Automatic delivery of embryos. Infrared tube heating, strong penetrating power, uniform heating, fast and reliable. Each mechanical action has a self-locking device. When a process fails, the program will automatically switch to a safe state. All action cylinders are driven, pollution-free, and low noise. The clamping force is strong by adopting high pressure and a double crank arm connecting rod. It can be in manual or automatic mode. Easy to install, the production process is fully automated, easy to operate, simple to maintain, safe, hygienic, high yield, and efficient.
	New Auto Preform Unscrambler System. *Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solves the preform block and abrasion problem. *There are two photoelectric sensors to controlthe preform-loading motor and a preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
	New Heating System. *Perfect heating system design decreases power consumption. *Special oven design helps power saving and easy maintain. *Each lamp position and temperature can be adjusted. *Cycle air-cooling system keeps the oven temperature constantly.
	Preform Motor -Through telescopic action making preform movement. -Flexibility and stability. -Improving Production Efficiency
	Clamping Frame -Increase clamping speed and output -Reduce clamping noise -Stable performance

Customized service
Easy To Change Bottle Shape.
*Drawer-type mold structure design makes it easy to change the mold. Within one hour, a mold can change on the same bottleneck diameter condition.

Container	Max Container Volume Itr	2
	Max Neck Diameter mm	50
	Max Container diameter mm	110
	Max Container Height mm	320

Product Parameters

Model		NB-4000	NB-4000SF
Molding	Clamping Force kg	22000	22000
	Clamping Stroke mm	125	125
	Stretching strok mm	450	450
	Bottom Stroke mm	40/70	40/70
	Cavity Spacing mm	120	120
	Number of Cavities	4	4
	Carriage Unit pcs	124	124
Theoretical Output	BPH	3500-4000	5500-6000
Electrical System	Total Power kw	50	52
	Heating Power kw	32x1.5KW=48	32x1.5KW=48
	Number of Lamp Layers Layers	8	8
Air System	Operating Pressure kg/cm²	7-9	7-9
	Low Pressure Air Consumpt Itr/min	2000	1600
	Blowing Pressure kg/cm²	20-30	30-40
	High Pressure Air Consumpt Itr/min	3200	4000
Chiller	Operating Pressure kg/cm²	2-4	2-4
	Temperature Range ºC	10-12	10-12
	Consumption kcal/hr	2000	2500
	Flow Rate Itr/min	250	250
Main Machine	Main machine dimensions mm(L*W*H)	3000 x2130x2150	3000 x2130x2150
	Main Machine Weight kg	4000	4150
Preform Loader	Preform Loader Dimensions mm(L*W*H)	2350x1350x2650	2350x1350x2650
	Preform Loader Weight kg	550	550

Company Profile
About NAVAN
Navan Industrial has invested its best resources in technical research, to design and realize innovation in bottle-blowing, filling, capping, labeling, and packing systems which enable it to respond to and reach different demands and achieve new goals every day, seizing the market's expectations in the pass years. At the same time, we also provide turn-key services for customers, from plant layout, equipment manufacturing, and production line setup, to operator training. We are always trying our best to meet the demands of our customers continuously and seeking mutual development.Today Navan has enhanced its exsitence both in the domestic and global markets. Thanks to its various and perfect cases, we provide our customers with dedicated and customized solutions with quick responses. Navan machines have been utilized in large and small companies all around the world since the 1990s. Massive experience gained through the years of water, juice, soft drink, beer, honeys, sauces, etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
Navan Service
The sample service
1. We can send you the video of the running machine for your reference.
2. You are always welcome to come to visit our factory and watch the operation of the machines here. We will make the arrangements to pick you up when you reach the airport or railway station.
3. If we get the permission of the customer who has bought the machines from us, we will arrange your visit to their factory.

Customized service
1. We can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2. At the same time we will give you our professional suggestions on factory design, bottle design, label design .... etc

After-sales service
1. We will provide the B/L and Invoice, Packing List, and Certificate .... on time to make sure you can get the machine quickly
2. When you finish the Preparation conditions, we will send our engineer to your factory for the installation, testing, and also training.
3. We provide a one-year warranty with spare parts free since the machine installation is done. NAVAN supplies and manufactures the following machines 1) Water treatment equipment--- Electrolytic water equipment, RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softeners, Sea Water treatment.
2) Filling Machine --- 2 in 1 Filling Capping Machine / 3 in 1 Washing filling capping machine / 4-in-1 Washing filling capping machine / 5 in 1 Washing filling capping machine ---for your water, beer, kombucha, Kvass, carbonated drink, juice, wine, vinegar, milk, tea and so on.
--- 100 to 2500ml bottle, 3-10L,11- 20L bottle (3-6gallon bottle)
--- PET bottle, Glass bottle, PP bottle, and Can
--- Pressure Cap, Screw Cap, Aluminum Cap, Grown Cap, T-cork, Wooden Cork, and three (four) twist caps, etc.
3) Labeling Machine --- Stick label, Shrink sleeve label, Hot melt Opp labels. Wet glue label
4) Printer --- Manual code printer, Inkjet printer, Laser printer
5) Packing Machine ---- Shrink wrapper, Carton Packer, Palletizer, Conveyor system, Robot Packing System
6) Bottle Blowing Machine --- Linear and Rotary Blowing Machine for making plastic bottle
7)Injection Molding Machine --- for your cap and proform.
8) Subsidiary products for drink production --- Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
NAVAN will supply you with bottle design, label design, and workshop design free and make a Turnkey Project for you.
Don't hesitate to contact us if you show interest in our beverage production machine and our NAVAN company. Certifications
Packaging & Shipping
Customers
FAQ
Q1: What is the warranty period?
We provide 12 months warranty for all spare parts. (exclude fragile parts).
Q2: How do you control the quality?
1) All NAVAN machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labor, followed by a particular QC
3) All information about our products can be checked in the efficient management system.
Q3: What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patents for all our current models and spare parts. Such as the innovation patent squeegee design.
Q4: What kind of service do you provide?
Before sales: Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience.
After-sales:
1. Technical training according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On-time response to mail and phone calls of your complaints or consultation.
Q5: Are you a factory or a trading company, where are you located?
We are a factory, just 150km(1.5hour by car) away from Shanghai Airport. We offer a pickup service in Shanghai for your visit.
We Warmly Welcome Customers All Over The World To Our Company. ANY DEMANDS OR REQUEST, Please Contract With Us FREELY!
