Custom Small Mini Swamp Buggy Backhoe Price 30 Ton Long Reach Crawler Marsh Buggy Excavator with River Floating Tank Amphibious Pontoon for Sale

Product Description

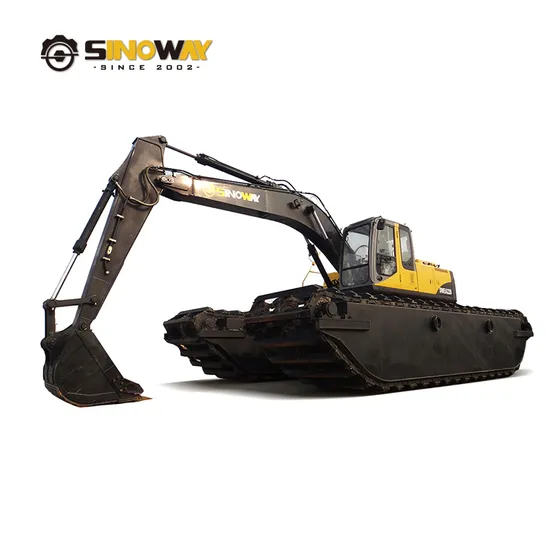

SINOWAY Swamp Excavator
Highlights
Durable Hydraulic Undercarriage Pontoons
The hydraulic undercarriage pontoons are extremely important to an amphibious excavator, Sinoway is pride of his abundant experience on manufacturing pontoons that last. According to your application requirement and working conditions, we areable to design and produce an amphibious excavator specially for your working area covering swamps, salty land, off-shore, river area and so forth.
Well protected hydraulics
hydraulic hosed are well protected by the full sealed container which minimize the possibility of damage these parts when working in swamp or water area.
Three-piece welding
The pontoons are now welded with three-piece steel sheet structure in stead of normal four-piece, two bent steel plates are connected on the top, thus the eliminating of long welding seam makes the whole pontoon even durable and neater.
Heavy duty chain link and wearproof liner
Sinoway swamp buggy comes with steel track cleats with specially design to against wearing and distortion. The material of the track plates is wear.proof steel plate, with extra toughness, special stud plate structure inside the track cleat to make it strong enough to supporting the pontoons and upper excavator.
Product Show
Machine Introduction
Specifications

Engine
Model	Cummins
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	106~125KW
Rated speed	2100rpm
Main Technical Specification
Operating weight	30000~42000Kg
Standard bucket capacity	0.5~1.1m³
Slewing speed 11rpm	11rpm
Stick digging force	110KN
Bucket digging force	150KN
Main Features
Tracked pontoon structure
Big torque travelling device
Big circular arc structure
High capacity of fuel tank
Main Applications
River/Beach earth moving
Swamp works
Dredging applications
Delta works
Waterway deepening
Hydraulic System
Main pump	KAWASAKI
Main valve	KAWASAKI
Motor	KAWASAKI
Hydraulic flow rate	2x235L/min
Hydraulic pressure	32MPa
Travelling System
Travelling speed	0~5.4km/h
Grade ability	65%
Ground pressure	0.0135MPa
No. of chains	3
Dimensions
Overall length	11200mm
Overall width	5350mm
Overall height	3900mm
Ground clearance	1192mm
Length of pontoon	8500~10200mm
Width of pontoon	1760mm
Height of pontoon	1700mm
Operating Scope
Stick length	3000mm
A: Max. cutting height	10980mm
B: Max. dumping height	8140mm
C: Max. digging depth	6940mm
D: Max. reach	10290mm
