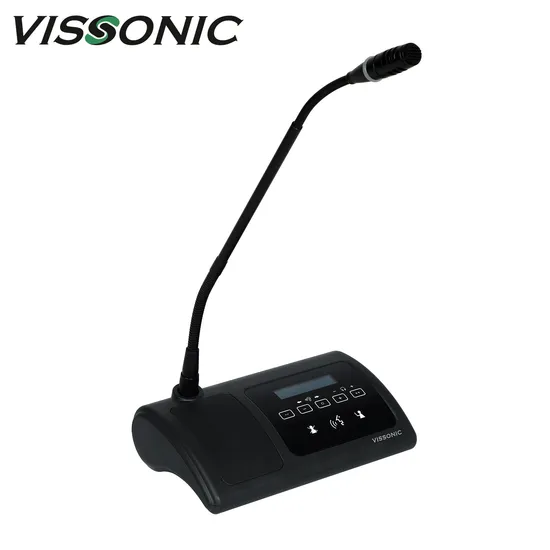

Full Digital Wireless Conference System Discussion + Voting Unit Microphone

Product Description

Full Digital Wireless Conference System Discussion + Voting Unit Microphone Features:
1.Stylish, low profile design with touchable interface
2.5G Standard WiFi Wireless communication, with low voice latency and no interference from 2.4G signal, setting up all system in few minutes to be ready for using, and put them away in short time as well.
3.Built-in DC connector for power supply without battery
4.OLED screen, providing excellent brightness, contrast, wide viewing angle but low power consumption
5.Detachable battery pack is easy to replace and charge, 20 hours continuous working time after full charge.
6.Internal high fidelity loudspeaker
7.Head-set interface in both sides with volume adjust
8.Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference
9.Full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.
10.Support pluggable microphone and different length of microphone with strong audio collecting ability.
11.The microphone sensitivity of each unit and 16 level equalizer EQ can be
adjusted independently
12.Timer on display to set certain time for each delegate to speak, will remind user or close the MIC automatically
13.All units can be configured as Chairman or Delegate unit through software settings based on model WDC-T.
Technical Parameters

Button	Touchable interface, no physical buttons
Sound Pickup	heart type capacitance
Sensitivity	-46 dBV / Pa
Maximum power consumption	2.0W
Directivity	0 ° / 180 °> 20 dB (1 kHz)
Headphone load	16Ω
Headphone volume	10mW
Headphone jack	3.5mm stereo
Input impedance	2kΩ
SNR	70dB
Frequency response	20 ~ 20000Hz
Equivalent noise	20dBA (SPL)
Main material	ABS
Operating temperature	0 ºC to + 55 ºC
Color	Black
The maximum sound pressure	125dB (THD <3%)
Weight	1.1kg (with microphone)
Dimension	195W × 120L × 60Hmm(without microphone)
