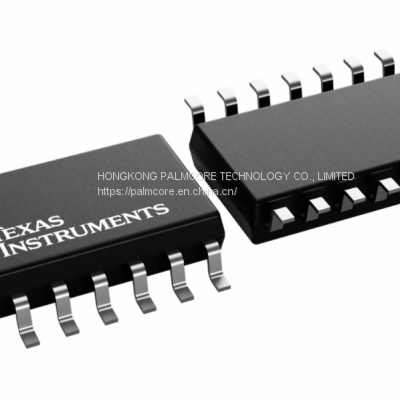

AM26LV31EIDR

Product Details

Product Description

Product Description
1 Features 1• Meets or Exceeds Standards TIA/EIA-422-B and ITU Recommendation V.11 • Operates From a Single 3.3-V Power Supply • ESD Protection for RS422 Bus Pins – ±15-kV Human-Body Model (HBM) – ±8-kV IEC61000-4-2, Contact Discharge – ±15-kV IEC61000-4-2, Air-Gap Discharge • Switching Rates Up to 32 MHz • Propagation Delay Time: 8 ns Typical • Pulse Skew Time: 500 ps Typical • High Output-Drive Current: ±30 mA • Controlled Rise and Fall Times: 5 ns Typical • Differential Output Voltage With 100-Ω Load: 2.6 V Typical • Accepts 5-V Logic Inputs With 3.3-V Supply • Ioff Supports Partial-Power-Down Mode Operation • Driver Output Short-Protection Circuit • Glitch-Free Power-Up and Power-Down Protection • Package Options: SO, SOIC, TSSOP, VQFN 2 Applications • Motor Drives • Space Avionics and Defense • Medical Healthcare and Fitness • Wireless Infrastructure • Factory Automation and Control 3 Description The AM26LV31E is a quadruple differential line driver with 3-state outputs. This driver has ±15-kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8-kV ESD (IEC61000-4-2, Contact Discharge) protection. This device is designed to meet TIA/EIA-422-B and ITU Recommendation V.11 drivers with reduced supply voltage. The device is optimized for balanced-bus transmission at switching rates up to 32 MHz. The outputs have high current capability for driving balanced lines, such as twisted-pair transmission lines, and provide a high impedance in the power-off condition. The AM26LV31EI is characterized for operation from –40°C to +85°C. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) AM26LV31EID SOIC (16) 9.90 mm × 3.91 mm AM26LV31EINS SO (16) 10.30 mm × 5.30 mm AM26LV31EIPW TSSOP (16) 5.00 mm × 4.40 mm AM26LV31EIRGY VQFN (16) 4.00 mm × 3.50 mm (1) For all available packages, see the orderable addendum at the end of the data sheet.
