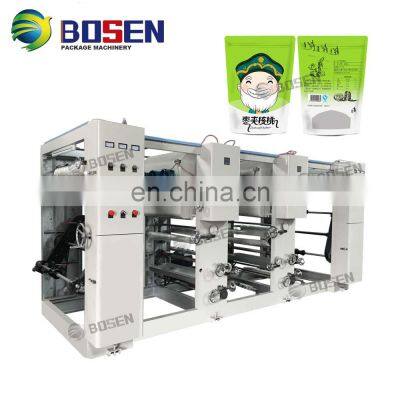

ASY gravure printing plastic film reel machine

Product Description

Product Description
Product Description
Differerent models for your choice. we have economic model, middle speed model, high speed model, fully automatic model. Pls contact with us to know more.
This machine is used for paper、 Foil、Non-woven Fabric、 BOPP、PET、PVG、PE、LDPE and Paper etc with good printing performance of rolling material for multicolor continuous printing
Model
BS AYG600
BS AYG800
BS AYG1000
Print width
600mm
800mm
1000mm
Print speed
60-150m/min
60-150m/min
60-150m/min
Diameter of material roll
600mm
600m
600mm
Colors
8 colors
8 colors
8 colors
Total power
150kw
160kw
160kw
Weight
18000kg
20000kg
22000kg
Dimensions
14800x2150x2650mm
14800x2350x2650mm
14800x2650x2650mm

Model
BS-ASY600
BS-ASY800
BS-ASY1000
Print width
600mm
800mm
1000mm
Print Speed
10-60m/min
10-60m/min
10-60m/min
Power of motor
2.2kw
4kw
7.5kw
Print length
200-900mm
200-900mm
200-900mm
Heating power
2kw/set
3kw/set
4kw/set
Dimension
1200x1400x2000mm/ set
1200x1400x2000mm/ set
1200x1400x2000mm/ set

Main Features
1. The whole machine is fixed by permutation composition, according to the customers' requirement the printing color unit can be increased or decreased as well as the cover printing mechanism can be added.
2. The mainframe adopts vector frequency speed controller.
3. Each unit of computer flashed system is controlled by separating microprocessor. It can adjust the flashed deviation quickly and precisely.
4. with display of flashed deviation, correcting for system comprehensive deviation as well as super-different slamming function.
5. Double photo-electricity checking; improve the whole checking and adjustment speed.
6. The winding and the winding traction adopt vector frequency motor and moment motor controller.
7. Wing is adopted with frequency motor with magnetic powder clutch to wind.
8. The printing pressure cylinders, discharging traction pressure cylinders and winding traction pressure cylinders adopt pneumatic controller.
9. Pneumatic back pressure shifting blade.
10. Ink circulation system.
11. Gas expansion style loading and unloading shaft.
12. Winding and rewinding are both double working mechanisms to make the material complete with non-stop.
Detailed Images
Our Company
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
