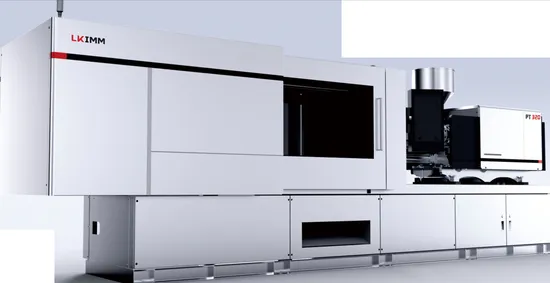

Lk Potenza-III 130 Ton High Precision Servo Injection Molding Machine

Product Description

Brief introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have over 10 production bases worldwide,1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang.
There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service. K6 series adopts the new Internet of Things injection molding 5G concept, with independent knowledge and technology connotation. The injection power of this series is increased by 10% ~ 30%, the new machine hinge point optimization design, with low noise, energy-saving, environmental protection, cloud injection interface, and other significant characteristics.
Advantages
1. Enlarged design of the mode-locking structure
2. The whole machine layout is reasonable, the shape line is firm
3. The momentum is strong and the cycle is shorter
4. High response, low noise hydraulic system
5. High precision linear guide injection unit
6. Add cloud injection molding network interface
Use of application
Technical Parameter List

	ITEM	UNIT	PT130
Shooting Part	Shot Weight(ps)	g	175	229	289
	Screw Diameter	mm	35	40	45
	Injection Volume	cm^3	192	251	318
	Injection Pressure	Mpa	214	164	130
	Screw L/D Ratio	L/D	25.7	22.5	20
	Injection Rate	cm^3/s	108	142	180
	Plasticizing Capacity(ps)	kg/hr	53	67	81
	Screw Speed	r/min	0-230
	Hopper Capacity	L	50
Clamping Part	Locking Force	KN	1300
	Die Height(Min-Max)	mm	150-450
	Opening Stroke	mm	360
	Space Between Tie Bars	mm	410*410
	Ejector Stroke	mm	120
	Ejector Force	KN	49
Others	Motor Capacity	KW	11.8
	Max. Working Pressure	Mpa	17.5
	Oil Tank Capacity	L	230
	Heating Capacity	KW	9.3
