Gnss Rtk GPS Antenna for Surveying Drones Exploration Drones

Product Description

Product Description

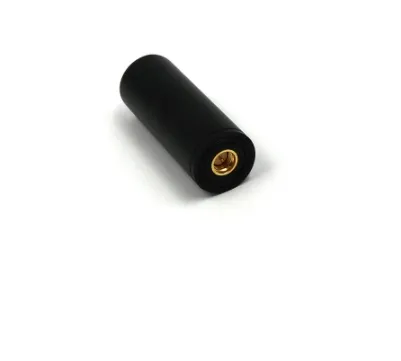

Product Name: Three constellations three bands Four Arm Spiral Antenna
Product model: LJ-HEA33A
Product description: including GPS, BD, GNASS satellites
Scope of application: smart agriculture, surveying, monitoring, navigation,
for various positioning-related applications, such as UAV, UGV, robotics and etc.

Model No	LJ-HEA33A
Impedance	50 OHM
Frequency	1559 MHz ~1602 MHz
VSWR	≤2.0
Passive Gain	2dBi
Polarization	R.H.C.P
LNA Gain	36±2dB
Noise figure	≤1.5dB
Operating voltage	3.3~12V
Operating current	≤30mA
Weight	20g
Waterproof grade	IP67
