Yhzs50 50m3/H Mobile Concrete Batching Plant

Product Description

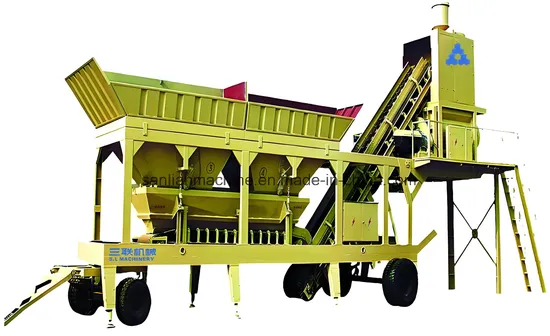

YHZS50 Mobile Concrete Mixing Plant
Product Description
YHZS series of mobile concrete mixing plant is designed and developed by our company especially for the users whose constructional project aim at shorting construction period,long construction line and frequent transition.The machine's structure is compact, small footprint,easy installation,high degree of automatic which widely used in road and bridge construction,architecture,water conservancy,electricity and other infrastructure.
Main Characteristics
1. East operation.
2. Outstanding environmental protection.
3. Accurate weighing.
4. Excellent mixing.
5. Simple maintenance.
Technical Parameters
Part 1:Parameters

Model	Productivity(m³/h)	Mixer			Hopper (m³)	Grading Accuracy		Trailed Speed(km/h)	Turning Radius(m)	Power (kW)	Total Weight(t)
		Model	Power	Volume (m³)		Agg	Powder
YHZD25	25	JS500	22	0.5	4×6.5	±2%	±1%	15	10	52	23
YHZS50	50	JS1000	2×18.5	1	4×6.5	±2%	±1%	15	10	68	25
Note:Total powers are vary according to different configuration.

Advantages
Part 2: Advantages

1.Modular structure is designed according to the container standard. The whole modules are all in one trailer unit, so it is conventient for installation, easy disassembly, and quick transitions.
2.Main mixer adopts JS-type mixer with twin-shaft forced concrete mixer, which ensures mixing quality, high productivity, on the dry hard, semi-rigid, plastic and various proportions of concrete can be completed in mixing well.
3.All measurement units of measurement devices and control components are imported components, computer controlled, fully guaranteed accurate and stable measurement.
4.Each repair and maintenance parts are equipped with platforms or ladders, maintenance performance.
5.The whole machine adopts computer control system, dynamic panel shows a clear understanding of the various parts of the operation. Intuitive control interface, can be clear, accurate observation of on-site workflow. Management reports can be printed.
6.Electronic control system components imported components, the overall performance is stable and powerful. Abnormal conditions and automatic fault detection, in the form of text, sound, light, alarm, self-diagnosis.
Main Composition
Part3: Main composition
1.JS500 Mixer
2.PL1600 three hoppers batching machine
3.Water,cement and additive measuring system.
4. Computer contrl system and control room.
5.Cement silo ( optional).

---
