Hck 230 Ton 4 Gallons Bottle Lid Injection Molding Machine Pet Preform Caps Making Machine

US$31,200.00 1 sets (MOQ)

Basic Info.

Model NO.
HCK 230
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Inserting Plastic Products
Oiltank Cubage
200
Injection Rate (G/S)
188 G/S
Weight (Kg)
7000kg
Machine Type
Hydraulic
Min,Mold Height
220
Max Mold Height
570
Injection Pressure
1862
Ejector Force(kN)
80kN
Single Gross Weight
50.000kg
Style
Horizontal
Ejector Stroke(mm)
150mm
Heating Power
14
Injection Weight (G)
491g
Power (Kw)
14 Kw
Transport Package
Wooden
Specification
HCK 230
Trademark
Haichen
Origin
China
HS Code
8477101090

Product Description


HCK 230 ton 4 gallons bottle lid injection molding machine PET preform caps making machine servo motor injection molding machine

Plastic preform injection molding machine is an injection molding equipment specially designed for the production of PET (polyethylene terephthalate) preforms.
The preform is an intermediate in the blow molding process, which can be made into end products such as beverage bottles, cosmetic bottles, and pharmaceutical bottles through subsequent heating stretch blow molding.
Its core uses include:
Multi-field packaging applications: covering mineral water bottles, beverage preforms, salad oil preforms, cosmetic bottles, etc.
Efficient production:
Achieve high-volume manufacturing through high-precision molds and automated processes to meet the needs of industries such as food and beverage, pharmaceutical, personal care, and more.
Product description
We are prefessional production base specialized in designing and manufacturing plastic injection machines and enjoy high reputation in the Plastic machinery industry.
Working principle and process flow Raw material pretreatment PET pellets need to be dehumidified and dried by a vacuum suction system, and the temperature is controlled at 160-180°C to ensure that the moisture content of the material is less than 0.005%.
Melting & Injection Molding The dried raw material is heated to 250-275°C in the injection molding machine and injected into the mold cavity at high pressure (e.g. 207.8 MPa) through a screw or plunger.
The melt is cooled and shaped to form a preform with a cycle time of up to 7.4 seconds (e.g. 192 cavities).
Post-processing and automation Water shearing:
After injection molding, the preform needs to cut off the tail nozzle, which traditionally relies on manual labor, and is now fully automated through the manipulator water shearing machine to improve efficiency.
Cooling and inspection:
Circulating cooling water is used to quickly cool down, combined with visual inspection system to reject defective products.
Picture Item Raw material Weight Mold Size Wall thickness Cav Cycle time Runner Machine

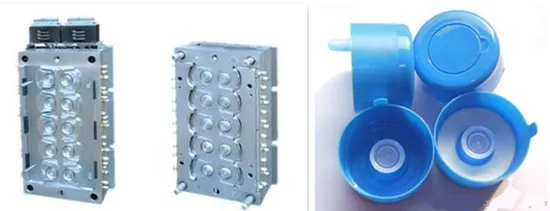

4 gallons water caps PP 9g diameter: 55mm height: 37mm 0.6mm 12 15s hot 220t

1.Timely and effective after-sales service.
2.Servo system is made of high quality components. The system robustness is strong, running stability.
3.Servo system adopted, energy-saving effect of up to 85%.
