automatic nonwoven Laminating machine

Product Description

Product Description

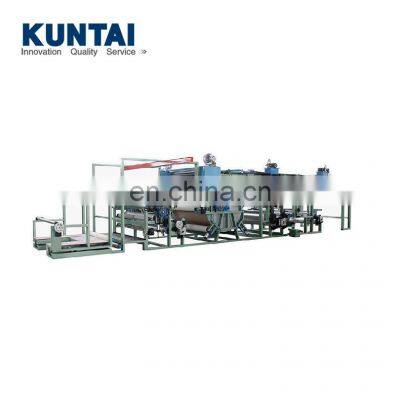

automatic nonwoven Laminating machine
Product Description
1. This series of lamination machines can be used for lamination of many kinds of materials, such as fabric with fabric, fabric with film (high permeability membrane or middle and low permeability membrane), nonwoven fabrics with leather, sponge with velvet, sponge with leather and so on.
2. Adopt glue point transfer method to let glue transferred to the lining evenly in spot form, then laminate to surface fabric, and vise versa.
3. The laminated product can be waterproof and breathable, water-washable, dry-washable and sand-washable etc.
4. For actual production problem of the laminating machine, we will work out sollutions for you as soon as possible.
Standard Technical Parameters (Customizable):

Model:	KT-FT-1800C Advanced Laminating Machine
Maximum Material Width:	1600mm
Drying Roller Diameter:	1500mm
Drying Roller Width:	1800mm
Heating Pipe Inside Drying Roller:	30 PCS x 1.5KW
Running Speed:	20-40 m/min
Power:	50 KW
Net Weight:	8500 KGS
Dimension:	12800 x 2500 x 3800 mm

Key Features:
Solvent based glue or PU glue is applicable for the laminating machine.Glue is transferred evenly to material surface via engraved roller (dot or diamond shape or other shapes). Therefore, laminated materials are soft, waterproof and breathable.The glue quantity is decided by two factors: the distance between the glue roller and the glue scraping blade (pneumatic control) and second, the glue roller mesh you choose for the laminating machine. Special high temperature resistant and antirust Teflon paper on the drying roller surface protects materials' original and unique features and characteristics and prevents the glue from sticking to the roller of the laminating machine. Special film unwinding device and film lining reclaimer are installed on the upper plate, facilitating operation as well as saving space. The glue can be transferred onto film or the other fabric before laminating, more options.Efficient cooling device boosts the lamination effect.Optional Features:
Both unwinding device and winding device of the laminating machine have magnetic constant tension control.Automatic hydraulic centering device ensures edge alignment in laminating.Pneumatic expanding shaft is installed for easy operation of the laminating machine.Fabric Spreading Rollers or Openers Tension Controller Gear Transmission will be used around the gluing device and the drying roller and synchrony belt can also be used to replace chain transmission where necessary, therefore there will be less noise in the running of the laminating mahcine and the speed will be well synchronizedFor 4-way stretch fabrics, a whole set of special devices will be installed.Automatic Edge Trimming device will be installed. If required, automatic edge waste removing device can be added. If required, Siemens or Mitsubishi motors can be used. If required, PLC control can be realized with the laminating machine, so it will be convenient to set the time, speed, temperature and other factors and the machine will have memory. You will not worry about senior workers leaving, because new workers will also do the job with PLC.
Fabric Laminating Machine Details:
Application
Automotive industry ( car interiors, car seats)Upholstery home textile industry ( office chairs, sofas, babies items, stuffings, beding articles)
Footwear industryGarment industryBags, gloves manufacturing industryLeather industryHealth care industry
Packaging & Shipping
Fabric Laminating MachineInner Package: Protective Film, etc
Outside Package: Standard Export Container
Machines well packed with protective film and loaded in export container;English version operation manual and technical data;One-Year-Period wear parts;Tool kit
