Integral Casting CNC Inclined Lathe High Strength Bed CNC Lathe Various Configurations Are Available

Product Description

Product Description

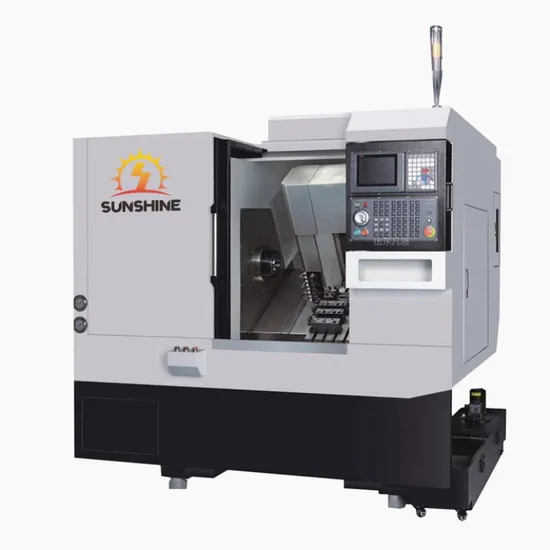

TCK4550
Integral casting CNC inclined lathe High strength bed CNC lathe Various configurations are available
Product Parameters

Specification	unit	TCK4550	TCK4556-500	TCK4556-1000	TCK4572-1500
Swing over bed	mm	500	560	560	720
Max machining length	mm	360	350	350	620
Swing over slide	mm	500	500	1000	1500
Spindle motor power	KW	11-15	11-15	30-37	30-37
Diameter of spindle through hole	mm	65	65	65	80
Max spindle speed	rpm	50-4500/177	50-4500/177	50-4500/177	50-3500/145
Tilt angle	deg	45	45	45	45
Clamping system	-	8"/10"	8"/10"	15"/18"/21"	15"/18"/21"
X-axis travel	Kw	200	200	200	420
Z-axis travel	mm	550	560	1050	1550
Tailstock sleeve diameter / travel	mm	450	450	900	1650
Sleeve taper	MT	5	5	6	6
X/Z fast movement	m/min	30/30	30/30	30/30	12/16
Dimensions	mm	2300*1600*1800	2300*1600*1800	5000*2400*2800	6000*2400*2800
Machine weight (approx)	Kg	3600	3600	4500	5000

Processing workpiece
Application fields
The application fields of CNC inclined lathes are very wide, such as aerospace, medical equipment, energy, transportation, automobile manufacturing, mold manufacturing, heavy machinery manufacturing, new energy and many other industries and fields. It can process parts such as gearboxes, clutch housings, engine cylinders, crankshafts, gearboxes, transmission gears, discs, pulleys, etc.
Detailed Photos
Chuck
precision chuck
large clamping range
fast clamping speed
Optional hydraulic chuck

Lathe tailstock
not easy to break
carefully ground
high-frequency quenching treatment

Hardened tailstock
Tailstock sleeve is high frequency hardened
Carefully ground
Not easy to wear
Quenched guide rail
high-quality cast iron casting, medium-frequency quenching, plastic bonding process, high hardness, good rigidity, high positioning accuracy, large tangential torque

Our Advantages
Packaging & Shipping
Company Profile
Shandong Sunshine Machinery Co., Ltd. is a manufacturing enterprise integrating development, research, manufacturing, sales and service. It has many years of experience in CNC lathe manufacturing, years of quality insistence, years of dedicated struggle and professional manufacturing. The company's main products include: vertical machining center, horizontal machining center, five-axis machining center, CNC vertical lathe, CNC inclined lathe, hydraulic press, sawing machine and other equipment, which can meet the needs of automobile, engineering machinery, agricultural machinery, petroleum, shipbuilding, aerospace, hardware mold and other industries, and provide integrated production solutions and services for users in different industries. Our products are exported overseas.
Our company has a group of experienced professional mechanical engineering designers, precision processing equipment, exquisite processing technology and modern management mode, which lays a solid foundation for the production of high-quality products. At the same time, continuous technological innovation, more and more products, complete models, to create a reliable and practical mechanical equipment for you.
Shandong Sunshine Machinery Co., Ltd. has a complete product quality assurance system and after-sales service, consistently puts product quality and user needs in the first place, adheres to the principle of good reputation and user satisfaction, and provides high-quality services to our customers.
FAQ
Q1: Can it be installed and debugged overseas?
A: Yes, we will arrive at the customer's site as soon as possible to install and debug.
Q2: Which countries have your equipment been exported to?
A: Our products are exported to many countries and regions including Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa, etc.
Q3: Are you a manufactuer or trading company?
A: We are manufacturers.
Q4: Are you in stock?
A: It is in stock, depending on which model of equipment you choose.
Q5: Can it be customized for us upon request?
A: Yes, we have a professional technical team to meet your needs.
Q6: What about the lead time for mass production?
A: The time will be determined according to the quantity of the specific ordered products.
Q7: How long will it take to ship?
A: About 30-60 days, the specific time is subject to the actual situation.
Q8: Packaging & Shipping:
A: Packed in wooden cases and transported by shipping.
Q9: What field is the product used in?
A: The company's products are widely used in processing fields such as automobiles, aerospace, molds, and machinery manufacturing.
Q10: About the price?
A: All products are sold directly by the manufacturer. They are produced in our own factory, eliminating the middlemen and are delivered directly to customers. The quality is guaranteed and the specific price is subject to the actual quotation.

---
