US$14,000.00-18,000.00
|
1 set
(MOQ)
|
Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Horizontal table size
800X400mm
Vertical table size
1020X225mm
X,Y,Z-axis travel
500X400X400mm
Spindle taper (H & V)
NT40
Spindle speed (H & V , variable)
40-2000rpm
Transport Package
Wooden Case
Specification
1500X1700X1800mm
Trademark
Dalian ZT Machinery
Production Capacity
300 Sets/Month
Product Description
Main features:
Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor. Electronic handwheel adopted on X Y Z 3-axis ,easy operating Automatic oil lubrication, cooling system, Chip collector tray, CE Schneider Electric are standard.
specification | unit | ZTX32 | ZTX40 | ZTX45 |
Work space dimensions | Mm | 750*320 | 800*400 | 850*450 |
Vertical table dimensions | Mm | 890*225 | 1020*225 | 1190*250 |
T-slots,work table | Mm | (5)14*63 | (6)14*63 | (7)14*63 |
T-slots,vertical table | Mm | (3)14*63 | (3)14*63 | (3)14*63 |
Table load capacity | Kg | 160 | 200 | 300 |
travels | Longitudinal(X) | Mm | 405 | 500 | 600 |
Transverse(Y) | Mm | 305 | 400 | 450 |
Vertical(Z) | Mm | 400 | 400 | 450 |
Speed range | Rpm | (2)40-2000 | (2)40-2000 | (2)40-2000 |
Spindle mount | | NT40 | NT40 | NT40 |
Feeds X Y Z axis | Mm/min | 10-1000 | 10-1000 | 10-1000 |
Rapid feed | Mm/min | 1200 | 1200 | 1200 |
Quill stroke | Mm | 60 | 60 | 60 |
Main motor rating | KW | 3.7 | 3.7 | 5.5 |
Feed motor rating | N.M | X:7.7 Y:7.7 Z:10 | X:7.7 Y:7.7 Z:10 | X:10 Y:10 Z:15 |
Dimensions (L*W*H) | Mm | 1500*1700*1800 | 1500*1700*1800 | 1600*1800*2000 |
weight | Kg | 1450 | 1550 | 1750 |
Standard Equipment | Specification |
Automatic oil lubrication | |
CE Schneider Electric | |
Electronic handwheel | |
Milling Arbors | Φ-16,22,27,32mm |
Reducing sleeves | MT1,2,3 |
Collet chuck with collets | 2,3,4,5,6,8,10,12mm |
Draw bar | |
Coolant system | |
Chip collector tray | |
Oscillation elements | |
Outer arbor support for horizontal milling | |
Work lamp | |
Operating instructions | |

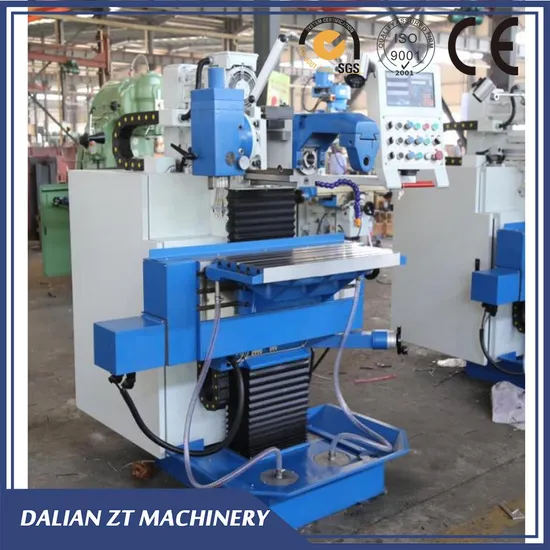

Machine Details:
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
>>
