Efficient SMD Stencil Printer for Quick Prototype Solutions

US$499.00 1 Piece (MOQ)

Basic Info.

Model NO.
TP3040
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
None
Color & Page
None
Application
printed Circuit
Print Interface
None
System Supported
None
Size of Workbench
300X400mm
Fixed Method
Magnet Positioning Column
Double Sided Board
It Is Available
Transport Package
Package
Specification
The package size: 640x480x250mm
Trademark
Tronstol
Origin
Hangzhou
HS Code
84431980
Production Capacity
200pieces/Year

Packaging & Delivery

Package Size
64.00cm * 48.00cm * 25.00cm
Package Gross Weight
26.000kg

Product Description

https://tronstol.en.made-in-china.com/contact-info.html Product Description

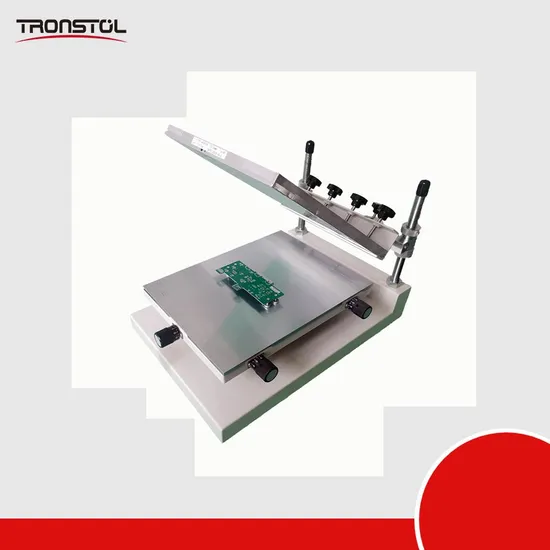

TP3040 high-precision manual printer is mainly used for single-sided or double-sided circuit board solder paste or red glue printing requirements.
The working platform is made of high-quality aluminum, and its base is welded with thick steel plates, which is strong and durable. Its characteristics are as follows:
•The circuit board uses fixed beads and fixed posts for positioning, which can ensure convenient positioning and accuracy of repeated operations.
• Make ready mode is made by moving the template, and combines the fine adjustment and correction of the X and Y axes in the printing platform, which is convenient and fast.
•The template support adopts spiral bearings, the height can be adjusted up and down, which is convenient to control the thickness of PCB and the amount of printing paste.
• The printing plate is fixed by four knobs with pressure rollers, fast and firm.
Specification
Specification
Model TP3040
Size of workbench 300x400mm
Max printing size 250x400mm
Max screen frame dimension 370x470mm
Thickness of printed matter 0-80mm
The adjustment volume of workbench 10mm
Height of printing platform 220mm
Repeatability precision ±0. 01mm
Location mode Shape or benchmark hole
Outline Size 640x480x250mm
Net Weight 23kgs
Gross Weight 26kgs
