Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Mechanical Drive
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Product Name
CNC Lathe GSK
Tail Stock Sleeve Taper
Mt5
Thru-Hole of Spindle
130mm
Repeatability Error
0.01mm
Max.Swing Over Bed
1250mm
Max.Work Piece Length
1500/3000/4000/5000/6000mm
Positioning Accuracy
0.005mm
Repeatability (X/Y/Z)
0.003mm
Transport Package
Plywood Wooden Box
Specification
5000*2250*2300mm
Production Capacity
100 Sets/Month
Product Description

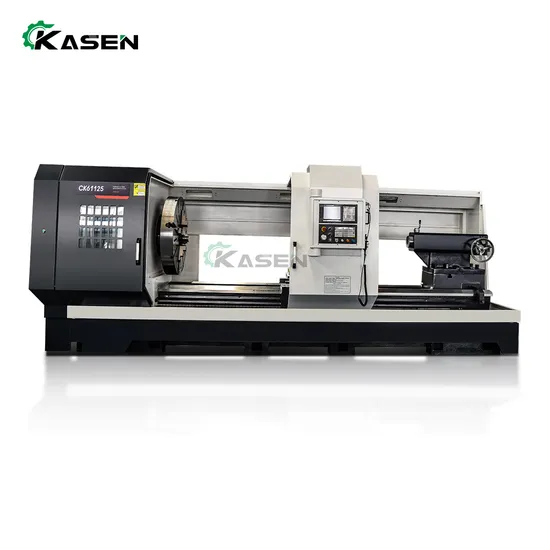

Used For Metal Processing CK61125 Heavy Duty Lathe Machine
Product Description
*Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/82/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration:755mm bed width,4 station electric tool postSpindle hole 130mmManual chuck, manual tailstockGSK control systemOptional configuration:Hydraulic chuck,Hydraulic tailstock,6/8 station electric turret,Siemens/ Fanuc control systemIndependent spindleServo main motor.Auto chip conveyor
Product Parameters
SPECIFICATIONS
| Units
| CK61100
| CK61125
|
Swing over bed
| mm
| 1000
| 1250
|
Swing over cross slide
| mm
| 610
| 850
|
Distance between centers
| mm
| 1500/3000/4000/
| 1500/3000/4000/
|
5000/6000
| 5000/6000
|
Guideway width
| mm
| 755
| 755
|
Max. load capacity
| T
| 6/10
| 6/10
|
Spindle bore
| mm
| 130
| 130
|
Spindle bore taper
| -
| Metric φ140/MT6
| Metric φ140/MT6
|
Spindle nose type
| -
| A2-15
| A2-15
|
Spindle speed steps
| -
| VF. 4 steps
| VF. 4 steps
|
Spindle speed range
| rpm
| 4-300
| 4-300
|
Chuck
| mm
| φ1000 4-jaw manual
| φ1000 4-jaw manual
|
Turret/tool post
| -
| Eletric 4 position
| Eletric 4 position
|
Tool size
| mm
| 40 x 40
| 40 x 40
|
X axis travel
| mm
| 520
| 620
|
Z axis travel
| mm
| 1350/2850/3850/
| 1350/2850/3850/
|
4850/5850
| 4850/5850
|
X axis rapid traverse
| mm/min
| 4000
| 4000
|
Z axis rapid traverse
| mm/min
| 6000
| 6000
|
Tailstock quill diameter
| mm
| φ160
| φ160
|
Tailstock quill taper
| -
| MT6
| MT6
|
Tailstock quill travel
| mm
| 300
| 300
|
Main spindle motor
| kw
| 22
| 22
|
Coolant pump motor
| kw
| 0.125
| 0.125
|
Weight for 1500
| kg
| 10000
| 11000
|
Weight for 3000
| kg
| 11500
| 12500
|
Weight for 4000
| kg
| 12500
| 13500
|
Weight for 5000
| kg
| 13500
| 14500
|
Weight for 6000
| kg
| 14500
| 15500
|
Dimension for 1500
| mm
| 5000x2100x2100
| 5000x2250x2300
|
Dimension for 3000
| mm
| 6500x2100x2100
| 6500x2250x2300
|
Dimension for 4000
| mm
| 7500x2100x2100
| 7500x2250x2300
|
Dimension for 5000
| mm
| 8500x2100x2100
| 8500x2250x2300
|
Dimension for 6000
| mm
| 9500x2100x2100
| 9500x2250x2300
|
Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
>>
