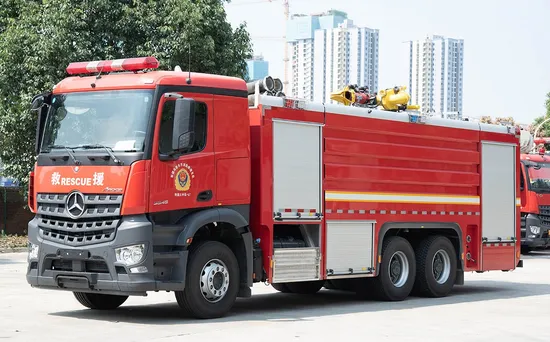

Mercedes-Benz 16000L Water Foam Tank Fire Truck Good Price Specialized China Manufacturer 8X4 6X4 6X6 4X4 New Guangdong Diesel Airport Pickup Heavy Duty

Product Description

Product Description 1. Model: SXF5311GXFPM160 Water&Foam Fire Truck
2. Dimension: Approx. 10370*2500*3790mm
3. Full Load Weight: Approx. 31000kgs
4. Number of the Crew: 2 (include driver)
5. Max. Speed: 85km/h
6. Compartment: Complete Aluminum Material and Never Rust
7. Capacity: 10000L Water and 6000L Foam. PP composite material liquid tank and Never Rust
8. Fire pump flow rate: 100L/s @ 10bar
9. Roof monitor flow rate: 80L/s
10. Painting: Red Color or Others
Product Parameters

Fire pump
Brand	American HALE
Model	CB10/100-RSD
Rated pressure	1.03MPa/4.0 MPa
Rated flow	100L/s
Startup time	≤80s
Installation form	Rear mounted

Fire monitor
Brand	French POK
Model	PLKD80-SNAKE4.0
Rated flow	80L/s
Range	Water ≥ 85m,foam ≥ 75m
Installation location	Top of vehicle
Control method	Electric remote control
Horizontal rotation angle	0°~340°
Pitch and rotation angle	-15°~60°

Company Profile CXFIRE, established in 1963, is the biggest fire trucks manufacturer in China with more than 60 years experience. The main manufacturing base is located in Chengdu of Sichuan Province with an area of 200,000 square meters and 600 staff members. More than 2000 units fire trucks and special vehicles are produced and sold every year.
CXFIRE has complete products system, including hundreds of fire trucks, fire equipment, fire fighting robots and other special vehicles. CXFIRE and its main products have obtained ISO, CCC, TUV, CE, EN and NFPA certifications.
CXFIRE products sell all over the world, including Asia, Middle East, Africa, Europe and America. CXFIRE has complete sales networks and after-sales service stations in global markets.
Technical & Process Advantages 1. Complete Aluminum Compartment and Never Rust. The compartment uses high-quality aluminum alloy profile, and the integral welded frame structure is made by the patented technology. It has a built-in bolt connection and the space could be adjusted easily. It has the advantages of high strength, corrosion resistance and light weight. All harnesses are preset in the groove to avoid wear.
2. High-Quality PP Composite Material Liquid Tank and Never Rust. PP is a special plate made of polymer composite materials to create a liquid tank for fire truck. It has the advantages of high strength, impact resistance, low temperature resistance and corrosion resistance.
3. Modular Control System. The control system adopts PLC intelligent program design and full electronic control operation. Different control program modules are available to choose according to the vehicle configuration. With waterproof and dustproof design, the protection level can reach IP56 or higher.
4. Modular Standard Parts. Water pumps, fire monitors, aluminum roller shutter doors, storage racks and pipelines are all manufactured by CXFIRE with modular design. It can not only ensure the quality of parts and the best match with the whole vehicle, but also ensure generalization and flexibility.
Factory View

---
