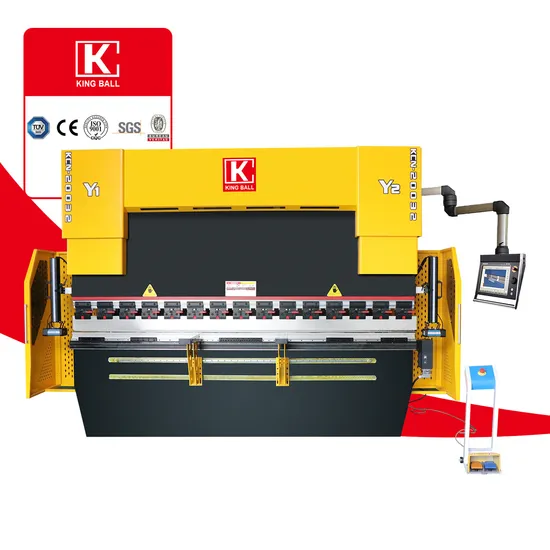

Delem Da53t Control System 4 Axes Full Servo Bending Machine Hydraulic

Product Description

For more details, please click here.>>>

Electro-hydraulic CNC Press Brake			KCN-10032	KCN-10040	KCN-16032	KCN-16040	KCN-20032	KCN-20040
Capacity		kN	1000	1000	1600	1600	2000	2000
Max. Bending Length		mm	3200	4000	3200	4000	3200	4000
Between Columns		mm	2700	3200	2700	3200	2700	3200
Max. Shut Height		mm	480	480	480	480	480	480
Slide Stroke		mm	200	200	200	200	200	200
Throat Depth		mm	350	350	350	350	400	400
Down Speed		mm/s	160	160	130	130	130	130
Pressing Speed		mm/s	12	12	10	10	10	10
Return Speed		mm/s	130	130	120	120	120	120
Main Motor Power		kW	7.5	7.5	11	11	15	15
X axis stroke		mm	500	500	500	500	500	500
X axis speed		mm/s	300	300	300	300	250	250
R axis stroke		mm	200	200	200	200	200	200
R axis speed		mm/s	50	50	50	50	50	50
Outline Size	L	mm	3700	4500	3700	4500	3700	4500
	W	mm	1750	1750	1870	1920	1920	1950
	H	mm	2450	2450	2700	2700	2700	2700
Weight		kg	7500	8000	10000	12000	12500	13800

For more parameter details, please click here.>>> Detailed Photos
Our Service Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery
overseas Contact Ways Ms. Linda Zhang Customer Manager E-mai:linda@jinqiu.cc FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For machine in stock, the lead time is within one week.For mass production, the lead time is 20-35 working days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
More questions, please click here.>>>

---
