CAT6 23 AWG F/UTP 0.57mm Bc 100% Copper PE Jacket 100 Meter Fluke Test Pass Network Cable

Product Description

We are 22 years coaxial cable, fiber optic cable, data cable manufacturer.
CAT6 23 AWG F/UTP 0.57mm BC 100% Copper PE Jacket 100 meter fluke test pass Network Cable
DESCRIPTION
Twisting a pair of mutually insulated metal wires in a counterclockwise direction at a certain density can effectively reduce signal interference, and then wrap multiple pairs of twisted pairs into an insulated cable jacket.
FEATURES
Low attenuation, low crosstalk;
wide transmission bandwidth and high transmission rate;
APPLICATIONS
Indoor / Outdoor, For the military, hospitals, banking and financial systems, etc.
PERFORMANCE

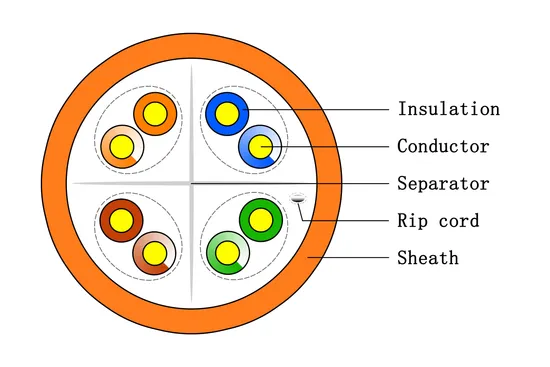

Construction
Conductor	COPPER		Insulation colors	Blue,White/Blue		Rip Cord		yes
Conductor Dia.	0.57mm			Orange,White/Orange		Sheath		UV-PVC
Insulation	HDPE			Green,White/Green		Sheath colors		optional
Insulation Dia.	0.90mm±0.005			Brown,White/Brown		Sheath Out Dia.		5.7mm±0.20
Drain Wire	CCA		Shielded	AI Foil		Average Thickness		0.5mm±0.05
Electrical Characteristics
Frequency (MHz)		ATT(≤dB/100m)			NEXT(≥dB)		ELFEXT(≥dB)
1		2.04			62.3		60.0
4		4.1			55.3		49.0
10		6.5			47.3		41.0
20		9.3			42.8		35.0
31.25		11.7			39.9		31.1
62.5		17.0			35.2		25.0
100		22.0			32.3		21.0
Characteristic Impedance		100±15Ω			D-C Resistance Unbalance		≤2.5%
Delay Skew		≤40ns/100m			D-C Resistance		≤11.5Ω/100m
Phase Delay		≤538ns/100m			Operating Temperature		-20ºC~+60ºC

FAQ
1.Are you the factory?
Yes, we are the factory with 22 years' history.

2. What is your main products?
Fiber optic cable: Outdoor/Indoor
Central loose tube/Stranded loose tube
FTTH Drop cables
ADSS
Coaxial cable: RG59/RG6/RG11
Network Data cable:UTP/FTP/SFTP
CAT5/CAT5e/CAT6/CAT7
Power cable: RVV series products
Various combination cables: Coaxial & Data cable
Coaxial & Fiber optical cable
RVV & Data cable
RVV & Fiber optical cable
3. Do you have certificate for raw material?
Yes, we do. We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Sample ready date is 2-3 days
Mass production is around 7-14 days
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 2KM
MOQ for coaxial cable:1KM
There is no MOQ required for CAT5e/CAT6 cable, as there's stock for normal kinds.
6. Are you willing to cooperate with distributors?
We are currently seeking distributors in many countries around the world for long-term cooperation.
7. Have you worked with operators?
Yes, we have many years of experience in cooperation and supply with operators.
8. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services, any of which is optional.

---
