Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Small Project, in Garden, Farmland, Municipal Work
Transmission
Mechanical Transmission
Bucket Capacity
0.02/0.024³
Certification
CE, ISO9001: 2000
Product Name

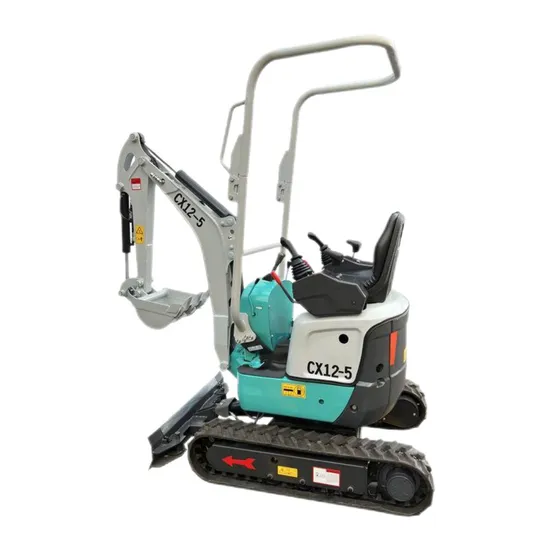

1.2 Ton Super Star Mini Excavator for Sale
Operation Way
Pilot Operation
Max. Travelling Speed
Single Speed, 2km/H
Production Capacity
5000PC/Year
Packaging & Delivery
Package Size
298.00cm * 99.00cm * 200.00cm
Package Gross Weight
1180.000kg
Product Description
Product Description
Detailed Photos
Specification
| Model | CX12-3 | CX12-5 | CX12-6 |
| Operating weight kg | 1050 | 1180 | 1200 |
| Bucket capacity std. SAE/CECE m³ | 0.024/0.020 | 0.024/0.020 | 0.024/0.020 |
Bucket width
(with/without side teeth) | 398/380 | 398/380 | 398/380 |
| Engine | | | |
| Model | D722-EF11 | D722-EF11 | D722-EF11 |
| Type | Water-cooled diesel
engine E-TVCS | Water-cooled diesel engine E-TVCS | Water-cooled diesel engine E-TVCS |
| Output ISO 14396 NET PS/rpm | 10.2/2500 | 10.2/2500 | 10.2/2500 |
| kW/rpm | 7.6/2050 | 7.6/2050 | 7.6/2050 |
| Number of cylinder | 3 | 3 | 3 |
| Bore X Stroke mm | 67 X 68 | 67 X 68 | 67 X 68 |
| Displacement cc | 719 | 719 | 719 |
| Dimensions | | | |
| Overall length mm | 2980 | 2980 | 2980 |
| Overall height mm | 2260 | 2260 | 2260 |
| Swivelling speed rpm | 8.3 | 8.3 | 8.3 |
| Rubber shoe width mm | 180 | 180 | 180 |
| Tumbler distance mm | 1010 | 1010 | 1010 |
| Dozer size( width X height) mm | 750/990 X 200 | 750/990 X 200 | 750/990 X 200 |
| Hydraulic pumps | | | |
| P1, P2 | Gear pump | Gear pump | Gear pump |
| Flow rate l/min | 10.5+10.5 | 10.5+10.5 | 10.5+10.5 |
| Hydraulic pressure Mpa(kgf/cm2) | 16.2(165) | 17.2(175) | 17.2(175) |
| P3 | - | Gear pump | Gear pump |
| Flow rate l/min | - | 3.1 | 3.1 |
| Hydraulic pressure Mpa(kgf/cm2) | - | 3.9 (40) | 3.9 (40) |
| Max. Digging force (arm/bucket) kN(kgf) | 5.4(550)/ 10.4(1060) | 5.4(550)/ 10.4(1060) | 5.4(550)/ 10.4(1060) |
| Boom swing angle (left/ right) deg. | 55/55 | 55/55 | 55/55 |
| Auxiliary circuit | | | |
| Flow rate l/min | 21 | 21 | 21 |
| Hydraulic pressure Mpa(kgf/cm2) | 17.2(175) | 17.2(175) | 17.2(175) |
| Model | CX12-3 | CX12-5 | CX12-6 |
| Operating weight kg | 1050 | 1180 | 1200 |
| Bucket capacity std. SAE/CECE m³ | 0.024/0.020 | 0.024/0.020 | 0.024/0.020 |
Bucket width
(with/without side teeth) | 398/380 | 398/380 | 398/380 |
| Engine | | | |
| Model | D722-EF11 | D722-EF11 | D722-EF11 |
| Type | Water-cooled diesel
engine E-TVCS | Water-cooled diesel engine E-TVCS | Water-cooled diesel engine E-TVCS |
| Output ISO 14396 NET PS/rpm | 10.2/2500 | 10.2/2500 | 10.2/2500 |
| kW/rpm | 7.6/2050 | 7.6/2050 | 7.6/2050 |
| Number of cylinder | 3 | 3 | 3 |
| Bore X Stroke mm | 67 X 68 | 67 X 68 | 67 X 68 |
| Displacement cc | 719 | 719 | 719 |
| Dimensions | | | |
| Overall length mm | 2980 | 2980 | 2980 |
| Overall height mm | 2260 | 2260 | 2260 |
| Swivelling speed rpm | 8.3 | 8.3 | 8.3 |
| Rubber shoe width mm | 180 | 180 | 180 |
| Tumbler distance mm | 1010 | 1010 | 1010 |
| Dozer size( width X height) mm | 750/990 X 200 | 750/990 X 200 | 750/990 X 200 |
| Hydraulic pumps | | | |
| P1, P2 | Gear pump | Gear pump | Gear pump |
| Flow rate l/min | 10.5+10.5 | 10.5+10.5 | 10.5+10.5 |
| Hydraulic pressure Mpa(kgf/cm2) | 16.2(165) | 17.2(175) | 17.2(175) |
| P3 | - | Gear pump | Gear pump |
| Flow rate l/min | - | 3.1 | 3.1 |
| Hydraulic pressure Mpa(kgf/cm2) | - | 3.9 (40) | 3.9 (40) |
| Max. Digging force (arm/bucket) kN(kgf) | 5.4(550)/ 10.4(1060) | 5.4(550)/ 10.4(1060) | 5.4(550)/ 10.4(1060) |
| Boom swing angle (left/ right) deg. | 55/55 | 55/55 | 55/55 |
| Auxiliary circuit | | | |
| Flow rate l/min | 21 | 21 | 21 |
| Hydraulic pressure Mpa(kgf/cm2) | 17.2(175) | 17.2(175) | 17.2(175) |
* With standard bucket ready for operation. Machine weight includes 75 kg operator.
* These values are measured under specific conditions at maximum engine speed and can deviate, depending on the operating status.
1,Exceptional Protective Performance: Wooden crate packaging provides excellent protection, effectively mitigating the impact of shocks, vibrations, moisture, dust, and other external factors during transportation. This ensures that the machine's performance and functionality remain uncompromised.
2,Moisture and Dust Resistance: Wooden crate packaging offers good moisture and dust resistance, preventing water, rain, dust, and other contaminants from entering the packaging and maintaining the excavator's appearance and mechanical components in optimal condition.
3,Ease of Stacking and Handling: Wooden crate packaging is often designed for easy stacking, maximizing storage and transportation space utilization. Additionally, the structure and weight of wooden crates facilitate straightforward loading and unloading processes, reducing handling complexity and risks.
4,Reusable: Wooden crate packaging typically boasts a longer lifespan, allowing for multiple reuse cycles and minimizing environmental resource wastage in alignment with sustainable development principles.
Package and sample
Exhibition
Certifications
Factory
| | |
| CX10T | CX11A | CX11B |
|
|
|
| CX12 | CX12-3 | CX12-5 |
| | |
| CX12-6 | CX18 | CX20 |
1. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge. |
2. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required. |
3. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
|
>>
