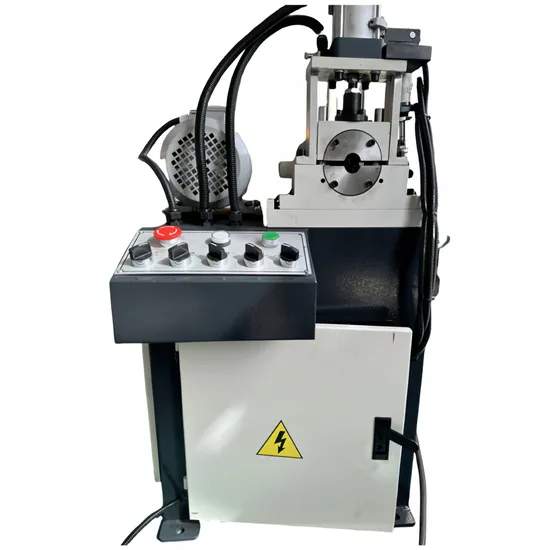

Automatic Metal Steel Pipe Rod Flat Bar Tube End Chamfering Machine

Product Description

Product Description
Main specification:

Features:
* Chamfering and debarring can be finished at one time in fast speed and accuracy
* Controlled by pneumatic semi-auto system, easy to operate
* Feeding tube by manual, blade forward and back automatically
* Clamping device and knife holder are designed precision and accurately, which ensure the center line of workpiece and knife holder keep at the same level
*Good mechanical parts ensure machine runs in high stability
Die clamper and cutter head are special designed, can finish internal angle, external angle
and pipe end one time. rotate speed can be adjust according to the change of belt pulley, suit for all kinds of metal
material pipes It is easy to adjust the cutting feeding speed.
Product Parameters

SPEC.	WY/52SD
Spindle motor	2x1.5kw/4P (for steel, iron tube/pipe)
	2x1.5kw/1.0, 2/4P (for aluminum, bronze)
	2×1/0.75kw,4/8p (for SS)
Hydraulic motor	2HPx4P
Air pressure	0.6-0.8Mpa, 120ml/min.
Cutter head range	Φ6-60mm(standard); Φ25-76mm(opt.)
Workpiece length	50-800(mm)
Weight	1250Kg
Size	900*1200*930(mm)

Detailed Photos

Pipe Sample

Our Advantages

Packaging & Shipping
Company Profile

Our Customer

FAQ
Q: How can I trust your quality?A: 1. All of the machines will be tested successfully in the WOYO workshop before shipment.2. We supply a 2-year warranty for all equipment.3. We can test your pipe/tube in our equipment before place the order, to ensure our equipment is suitable for your project.4. Our engineers will go to your factory to install and debug the equipment, they will not be back until this equipment canproduce qualified products.Q: Where is your factory located? How can I visit there?A: Our factory is located in Zhangjiagang city (1.5hours by car from Shanghai). You can fly to PVG airport. We warmly welcome your visit.Q: What are your payment terms?A: T/T or L/C, 30% as deposit, the balance should be paid before delivery but after inspection.Q: What kind of after-sales service does WOYO provide?A: WOYO will offer you all necessary documents, e.g. manual book, detailed machine installation, commissioning video to help youcorrectly operate the machine. Technicians can be sent to your factory if necessary. Technicians will be responsible for guideon-site installation and testing machines involved. Meanwhile, free training will be provided to the workers in your factory.Q: Does WOYO provide any warranties on its products?A: Yes! WOYO offers a 24-month warranty on all of our products. This warranty covers all manufacturing faults or defects. It doesnot cover the malfunctions or failures caused by your incorrect operations. The warranty is valid from the date of installationfinish and machine normal working and is available to the original purchaser of the product only.Q: Can I join in and become a distributor of WOYO?A: WOYO is currently seeking to expand its global distribution network by providing simple, efficient, and robust solutions tomeet clients' needs worldwide.Products Related QuestionsQ: What does WOYO need to know to help me select a machine?A: There are many factors that lead to the correct technology, below are primary factors that help us get going:Material: carbon steel tube, iron tube, copper tube, stainless steel tube, aluminum tube, lead tube or others?Diameter: Max.outside pipe diameterWall thickness: how many millimeters?The drawingsQ: How long is your delivery?A: We need 30 working days for production. If you cannot wait, please contact us freely, we will make any arrangements we can to meet your requirements.Q: How is the machine packed?A: Wrap by film, wood pallet, fumigation-free wooden box, iron case, or as per your request. All packagings ensure 100% safety in delivery.Q: How does your company do regarding quality control?A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Once the project is ready, we test it to confirm it works to the established parameters of the project before it leaves our factory. WOYO has gained ISO and CE certificates.Q: Can I custom my machine and print my own logo to the machine?A: Yes, of course. Whether it's a stand-alone machine or a complete system, WOYO can customize our machines to fit your specificapplication. We can customize robotic pick/place arms, automated loaders, and platforms to fit seamlessly into your production.Q: How can I get replacement parts for my machine?A: In the event of a machinery failure or fault, we can have the necessary part ready to ship on a 7-day basis if required,including all kinds of tooling, such as bend die, clamp die, pressure die, mandrel, wiper die, saw blade and so on.

---
