1800mm Wooden Box Dongguan Gooda CNC Duplex Vertical Milling Machine

Product Description

MODLE : VM-1825NCRG
CNC Planer Vertical Milling Machine,Full Automatic Rough and Fine Milling

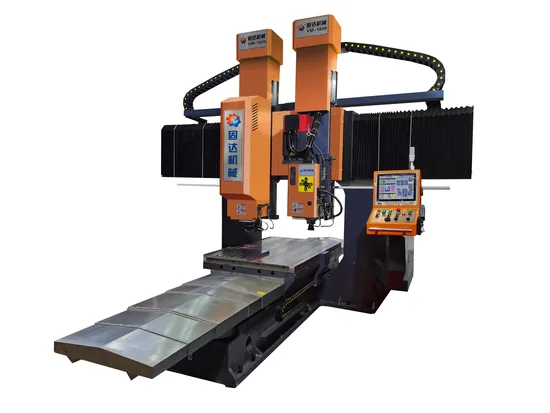

CNC GANTRY MILLING MACHINE

Features and applications: Automatically measure, automatically processing and excellent surface performance. Maintain high accuracy for dimension, squareness and parallelism. One loading and one setting needed only is helpful to shorten the preparation time. Mainly used for pre-squared steel plate and non-ferrous metal materials for flat surface. Machine base with chip removal groove
Separate Cutters - one for Rough milling, one for Finish milling

Item: CNC Gantry Milling Machine		Unit	Model
			VM-1825NCRG
Cutting Capacity	Control Axis	No.	4
	Maximum length	mm	2500
	Maximum width	mm	1800
	Maximum height	mm	700
	Column width	mm	1800
Worktable	Table size	mm	2500*1400
	Max loading weight	mm	10000
	T-slot size	mm	10*150*22
Gear Spindle (Rough milling)	Spindle power	kw	15
	Spindle taper	-	NT50
	Spindle speed	rmp	50-800
	Cutter diameter	mm	80
Belt Spindle (Finish milling )	Spindle power	Kw	11
	Spindle taper	-	NT50
	Spindle speed	rmp	50-800
	Cutter diameter	mm	250
Feed	X feed speed	mm/min	6000
	Y feed speed	mm/min	6000
	Z feed speed	mm/min	5000
	X/Y/Z Motor	Kw	5.5/3/2/2
Others	Machine height	mm	3800
	Machine weight	kg	21000
	Space	m	6.7*4.3
CNC system		-	FANUC SYSTEM OR Mitsubishi controller

You can choose FANUC system or MITSUBISHI Controller as you like.
*Gooda Milling Machine has full automatic measurement and / tool-setting, automatic tool division and automatic connection cutting, automatic rough cutting and finish cutting.
*Gooda will help you reduce setting time and reduce running cost,to increase efficiency.
The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
.

Dongguan GooDa Machinery Manufacturing Co.,Ltd established in 2012, is the first national high-tech enterprise integrating R&D,manufacturing,sales and service of CNC milling machine tools in China.The company has manufacturing bases in Dongguan Changping,Huangjiang,Qishi and Jiangsu Kunshan, and offices in the United States,South Korea, Malaysia,Thailand,Vietnam and Brazil.At present, it is one of the largest manufacturer of CNC Duplex milling machines in the world.
GooDa Machinery focuses on the field of CNC duplex milling machine, and has maintained rapid development since its establishment. Its independent brands: GooDa machinery,YaGoo machinery and JJR machinery have become the most influential brands in the industry. The design and positioning of the product is guided by the customer's needs of users in different scales and fields, and realize personalized customization, so as to create the highest economic benefits for customers.
Main products:CNC duplex milling machine,CNC high speed sawing machine, CNC Vertical milling machine,CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine,CNC Planar Grinding machine,Plate flipping machine.The application scope of the products includes mold steel,moldbase, aluminum plate,die processing and other metal cutting.After years of research and development and innovation, the products are at the leading level in terms of processing accuracy,machine stabilitym,Ergonomic design and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold industry.
After years of unremitting efforts, the company has obtained dozens of patent technology and software coyright, and has successively passed the ISO 9001 quality management system certification of EU TUV certification body,EU CE product safety certification, intellectual property management system certification,national high-tech enterpise evaluation and other honors.In order to maintain the leading edge of product technology,the company has actively carried out school enterprise cooperation to continuously promote the development of the enterprise while recruiting excellent talents in the industry.
Benefiting from the company's innovation and R&D advantages,the company has developed rapidly in just a few years. The existing R&D and production sites have restricted the company's subsequent development, and the space for capacity improvement is limited. For the company's sustainable development in the future, in 2018, GooDa invested heavily in the construction of GooDa machinery's normal headquarters Indusrial Park to support the development of the company's high-end CNC machine tool equipment project, Greatly enhance the company's CNC inteligent equipment capacit.
Let GOODA help you keeping quality at 100%!
According to following standards:
* TUV ISO 9001 certificate
* TUV certificate
* SGS certificate
* CE certificate
* More than 39 patents certificate
* National High-tech Enterprises certificate
Productivity benefits The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards GOODA just need a chance to be your reliable Cooperative Partner
YOUR INQUIRY IS WELCOMED AT ANY TIME!

---
