High Efficiency Stepping Motor Easy to Operate Flat Coil Winding Machine with Wire Diameter 0.1-1.5mm

Product Description

Specificaton
GWXS-9 High efficiency automatic bobbin transformer coil winding machine

Spindle number	1
Spindle speed	0-1200rpm
Wire diameter	0.1-1.5mm
Tensioner adapts to line diameter u nder nominal	0.10-0.50mm
winding diameter	0-280mm
spread width	0-180mm
Wiring speed	0-22mm/sec
Spindle motor	1.5kW three-phase AC motor +1.5KW fre quency converter
Spreading Motor	Two-phase hybrid stepper motor, static to rque 2N.M
Power Supply	Single-phase 220V±10% 50HZ
Machine Power	1.7KW
Machine size	Length: 900mm width: 500mm height: 66 5mm
Machine weight	110Kg
Multi-line and round	Changing part of the configuration enable s multi-wire and winding

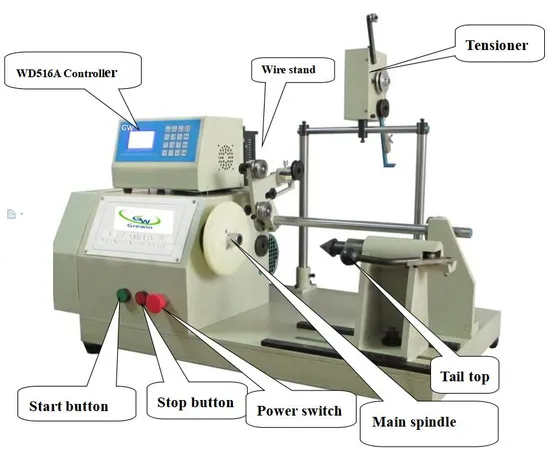

Description of main components:

Inverter	Domestic COVO
Spindle motor	Domestic
Spreading Motor	The motor is made in domestic KINCO, 2N.M static torque, long time working without heat
Controller	Independent research and development, ARM control chip, all Chinese LCD display
Screw	Taiwan TBI,C precision
Synchronous belt	Japan BANDO
Bearing	Japan NSK
Tensioner	Mechanical, independently developed
Spindle row box cast	Iron box independent research and development
Other mechanical components	Independent research and development

FEATURES:
1.Adopts 32 bit ARM control chip and CPLD, the calculation speed
is faster, and the error of arranging line is reduced effectively.
2.Input and output all photoelectric isolation, stable work.
3.All Chinese liquid crystal display, easy to operate.
4.Intelligent input winding point and wire width.
5.Intelligent deceleration of line commutation, to ensure faster line
alignment and greater torque. Detailed Photos

Application
SCOPE OF APPLICATION:
1.Medium size transformer
2.Solenoid valve coil
3.Multi-tap coil
4.Layer wrapping tape coil
5.Precision flat winding coil
6.Coil with larger diameter
7.Hot silk coil
Company Profile
Founded in 1993, Grewin has provided cost-effective, high-quality manufacturing solutions to a variety of industries. Whether it is the production of high-frequency transformers winding, low-frequency transformers winding, inductors winding and other coils winding , or other vital components, our winding machines have been relied upon by countless manufacturers around the world.
Our Team with Customers

Certifications

Packaging & Shipping

After Sales Service
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service

---
