High-Efficiency Emulsion Mixer Machine for Double Cone Blending

US$5,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
SIN-200
Application
Granules, Powder
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
PLC Control
Main Material
Stainless Steel
Mixing Capacity
100-250L
Safety Features
Anti-Slip Feet, Safety Lock
Speed Control
Single Speed
Speed Range
< 30 R/min
Stirring Type
Gravity
Working
High Speed Mixer
Transport Package
Export Wooden Package
Specification
1750*850*1750
Trademark
SINOPED
Origin
China
Production Capacity
50kg/Batch

Product Description

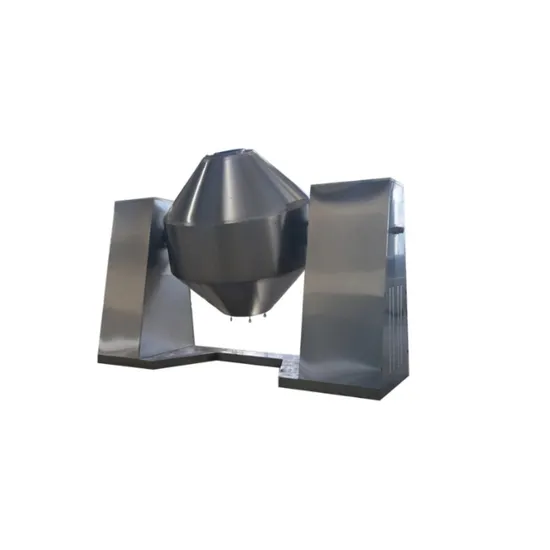

Product Description Double Cone Mixer
Through the vacuum conveyor the machine, send the powder or grain state materials into the double-taper container, or send the materials into the container manually.It's energy saving, easy for operation, the labor density is low, and the working efficiency is high.
Product Parameters
Volume≤100L
Cylinder speed3-12rmp/min
Turning height1750mm
Tank volume0.2m3
Maximum load≤50kg
Barrel materialSUS316
Framework outsourcingSUS304
Motor power2.5kw
Weight350kg
Dimension1750*850*1750mm
Feature 1. All surfaces in direct contact with the drug should be made of 304 stainless steel, and third-party material certification should be provided, mirror
Polished, surface roughness Ra < 0.4µm, the welding seam of the electric welding part is complete, and the surface treatment is consistent with the external appearance and color.Near, there should be no obvious solder joints, special parts of the material should meet the production, process and GMP requirements.
2. The rubber sealing material is made of natural rubber, silicone rubber, and under normal use, it is not easy to damage and does not occur after damage.Loose particles, and should be easy to disassemble and assemble, and to provide third-party material certification.
3. All concave and convex parts on the internal and external surfaces of the equipment adopt arc transition, or adopt chamfer transition to ensure that there is no dead Angle and easy to clean.
4. The outer surface of the equipment is smooth, clean, beautiful, and the transition is chamfered and rounded, and there shall be no obvious dents, haircuts,scratches, bruises and rust. The structure of the equipment is reasonable, the material contact part and the slit interface of the equipment table are properly passed.Good treatment can effectively prevent materials and clean water from entering, and at the same time can eliminate oil pollution and other polluting materials in the equipment,It can ensure that the material and the transmission parts do not pollute each other.
