Gfrp Pipe Production Line for Diameter DN2700, 2800, 2900, 3000, 3100, 3200mm

US$60,000.00-90,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Customized
Automatic
Automatic
Certification
CE, ISO
Controlled by
PLC
Transport Package
Seaworthy
Specification
Customized
Trademark
Fangchen
Origin
China
HS Code
8477800000
Production Capacity
100000tons/Year

Product Description

FRPM pipe winding machine could be classified into three types according to the largest production diameter. We adopt the advanced wet sand adding technology to make sure that the FRPM pipes are of good quality. The whole manufacturing process is similar with other FRP pipe production.

FPRM winding machine classification
DN300-1500*12000 definite sand system FRPM pipe winding production line. DN300-2600*12000 definite sand system FRPM pipe winding production line. DN300-3000*12000 definite sand system FRPM pipe winding production line. Production line component

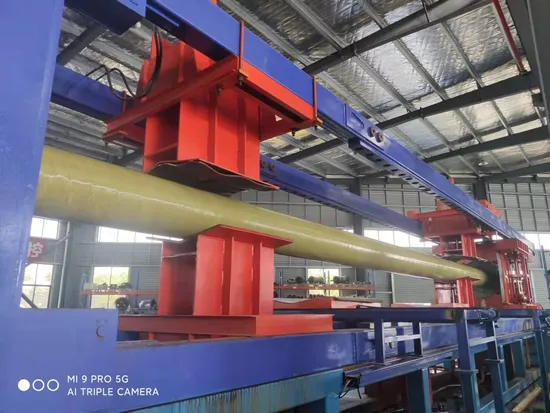

The main component device of production line are lining making machine, winding machine, curing station, demoulding machine, trimming machine, resin mixing and resin supply automatic station.
Main parameters
Pipe diameter: DN300-1500 mm, DN300-2600 mm, DN300-3000 mm. Pipe length: ≤ 12000 mm. Rotating speed of main draft: 0-85 rpm/min. Winding car speed (max): 60 m/min. Yarn width: 200 mm. Winding angle range: 45° - 90°. Total installation capacity: 110 kW / 120 kW / 130 kW. Way of sand adding: Wet sand: middle and bottom sand adding. Dry sand: top, middle, end, opposition side. Area of equipment: length 42000 mm, width 22000 mm. Control system: computer control system. FRPM pipe winding machine feature
Computer control system for precise operation. Advanced winding technology ensures quality FRPM pipes. Easy installation and maintenance. Low energy consumption and labor cost saving. FRPM pipe application
Drinking water delivery pipe. Sewerage pipelines. Water reuse pipe. Municipal water supply and drainage. Seawater delivery pipe and other kinds of buried pipelines.
