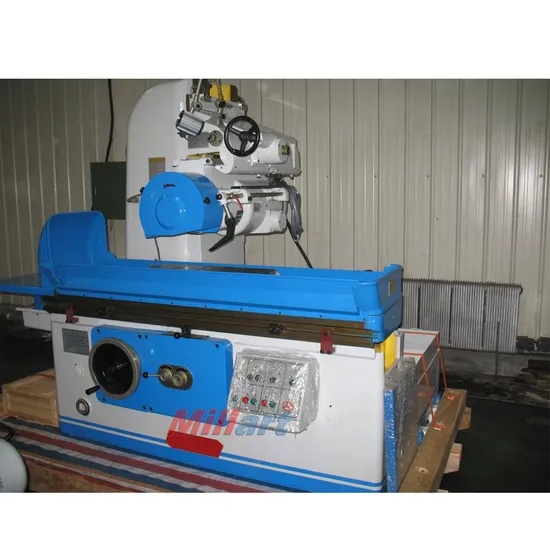

Heavy Duty Surface Grinder Machine M7130, High Precision Surface Grinding Machine

Product Description

Product description:
This series of surface grinder is most suitable for the grinding steel, casting and non-ferrous parts of machine manufacturing industry.
The accuracy of the machine has reached the National Standard for horizontal spindle & rectangular worktable surface grinder.
The longitudinal movement of the worktable is driven by vane pump, which makes the movement smooth and low noise.
The bearings of the wheel head spindle adopt bimetal shell bearing, which can afford heavy impact and make the machine able to carry out heavy load grinding.
The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically. It is easy to operate. The vertical feed of the wheel head is driven by hand. It is also assembled with rapid elevating motor, which can reduce the intention of work labor as well as enhance the work efficiency.
The machine moves smoothly and has reliable performance, low noise and stable accuracy. It is easy to operate and deeply welcomed by the customers.

Technical parameter :
Specification:

Model		Unit	M7130
Worktable size		Mm	300x1000
Max matching dimension		Mm	300x1000
Distance from spindle to table		Mm	575
Longitudinal move speed of table		m/min	3-27
T-slot number x W		Mm	3x18
Wheel head Cross moving	Continuous feed speed	m/min	0.5-4.5
	Intermittent feed speed	Mm/t	3-30
Vertical Moving of wheel head	Rapid speed	Mm/min	400
	Hand wheel feed	Mm/gra	0.005
Wheel Head motor	Power	Kw	5.5
	Rotation speed	Rpm	1440
Total power		Kw	8.63
Max loading capacity of table		Kg	470
Chuck size		Mm	300x680x1
Wheel size		Mm	350x40x127
Package dimension		Cm	284x171x213
Machine Weight		t	3.5

Standard accessories :
Wheel Flange ,
Balancing Arbor ,
Wheel Exactor ,
Coolant Tank ,
Working Lamp
Tool Box and Tools ,
Wheel dresser Stand not include diamond pen
Standard Grinding Wheel,
Leveling Wedge and Bolt
Built in Electro Magnetic Chuck Controller
Optional accessories :
Standard Electro Magnetic Chuck
Wheel Flange
Balance Stand
Coolant Tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
