Plastic Washing Recycling Machine for Waste Pet Plastic Bottle

US$30,000.00-60,000.00 1 Set (MOQ)

Basic Info.

Model NO.
PL
Screw
Single-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
ISO9001:2008
Capacity
300-3000kg/H
Keywords
Pet Bottle Recycling Line
Final Product
Clean Pet Flakes
Material Process
Crushing-Washing-Drying
Type
Plastic Recycling Production Line
Name
Pet Bottle Recycling Machine
Machine Warranty
12 Months
Machine Material
304 Stainless Steel
Steam Use
Optional
Final Moisture
1-2%
Processing Capacity
500kg/H, 1000kg/H, 1500kg/H, 2000kg/H
Motor Brand
Siemens Beide
Machine Color
Customized
Final Usage of Pet
Pet Fiber
Inverter
ABB
Transport Package
Wood Package
Specification
it depends
Trademark
plastar
Origin
China
HS Code
8477800000
Production Capacity
100sets/Year

Product Description

PET bottle recycling machine/plastic washing machine/plastic recycling plant Product Description :
1. This line is mainly used for recycling the waste PET bottle, PET container etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.
3. This line is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate, Full automatic.
5. Production capacity: 300KG/H, 500KG/H, 1000KG/H, 1500KG/H, 2000KG/H

Main Advantage :
1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film.
2. The final product is the cleaning flakes, if you want the final product is pellets, we should equip the granulator line again.

Process flow:

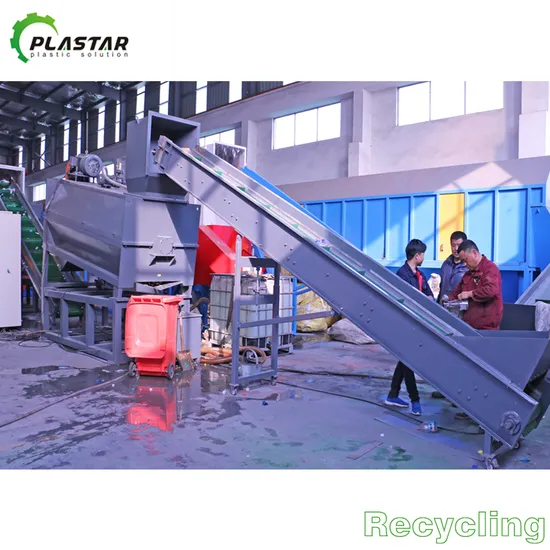

Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing

Features :
Capacity: 300-2000kg per hour
Moisture of PET Flakes: Less Than 1.5%
Cap &Label separate with the PET bottle flakes automatically
Bottle Types: PET Bottle, Plastic Bucket, Water Bottle, Coke Bottle,
Application: PET Strap, PET Yarn Fiber, PET Sheet
According to the customer different pollution levels of material, production line configuration will be different.
Model Capacity(kg/h) Power consumption (kw) Water consumption (ton/h)
MT-300 300kg/hour 150kw 3ton/h
MT-500 500kg/hour 230kw 4-5ton/h
MT-1000 1000kg/hour 270kw 6-7ton/h
MT-2000 2000kg/hour 370kw 8ton/h

Remark: we can customize the washing line according to client's material and product requirement.
Our machine are qualified with CE certificate. We can Provide you Turn Key Solution.
Machine pictures for reference:
Plastic bottle label remover,remove labels from bottles,label removing rate:99%-100%,
Blades Material: Tungsten steel,removable.Contact part material use SUS304 stainless steel.
Crusher machine, blade V type design.Blade material SKD-11 from Japan.
low noise, large capacity.To crushing waste plastic materials into small pieces .
High speed friction washer machine, rotation speed reach 1200rpm,
process with water, to remove material surface dirty. Bearing use NSK or SKF.
Hot washer,Heating type:Electric heating/Steam heating for option.
There is thermal keeping material around machine.contact part material use SUS304 stainless steel.
can remove dirty, oil and glue in the flakes. can separate flakes and labels again by deleting glue.
Floating washer tank ,to cleaning the dirty material.
Material are SUS304 stainless steel, 3mm thickness. equipped with level detector device.
Vertical dewatering machine(centriful dryer) rotation speed reach 1500rpm,to remove water,
equipped with automatic cleaning inside screen device.
Zig zag air classification system can delete the labels in the flakes.made of stainless steel.
With toughed glass window.Motor Brand:WN motor with CE certification.
Advantages of this pet bottle washing line
1.Final products with good quality.When processing PET bottles, final products humidity below 1%, impurities100ppm,PVC label content 100ppm.The whole line capacity between 300kg/h-3000kg/hour.
2.Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time.
3.World famous brand components applied on the production line- SKF bearing,Siemens contactor,Omron temperature, FUJI invertor, Siemens PLC control etc.
4.The whole production line with CE certification, ISO9001 certification.
5.The whole production equipment is researched, design and manufactured by our company, integration of Europe technology, it has features as high efficiency, working stable, large capacity etc.
About our company:
Zhangjiagang Plastar Machinery Co., Ltd. is a professional company specializing in the design and manufacture of plastic machines, such as single screw extruders, conical twin screw extruders, PVC, PE, PP and PP-R pipe extruders, PVC and PE profile extruders, PVC and PE recycling machines, crushing, washing and pelleting machines, conveying and mixing machines for all kinds of plastics and other kinds of auxiliary equipment in the field.
Our company is well known both at home and abroad for high quality products and complete service systems. Our products sell well all over the world.
If you are interested in any of our products, please feel free to contact us for more information.
