Foam Densifier Recycling System: EPS Crusher + Compactor

US$3,000.00 1 Set (MOQ)

Basic Info.

Model NO.
300
Material Processed
Foam
Plastic Type
Polystyrene
Screw
Single-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
QS, GMP, ISO9001:2008, CE
Power
Hydraulic + Motor
Output Size
300*300 / 400*400
Hopper
Vertical/Horizontal/Tilt
Motor
Copper Motor
Transport Package
Plywood Box
Specification
300/400
Trademark
Myaid
Origin
China
HS Code
8419899090
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
500.00cm * 150.00cm * 180.00cm
Package Gross Weight
400.000kg

Product Description

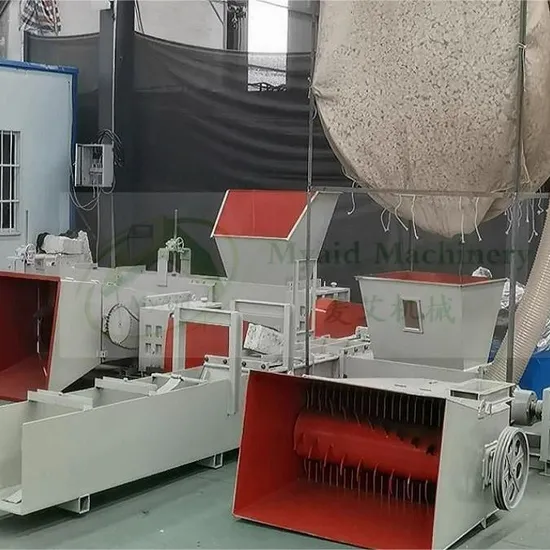

The foam densifier is mainly used to crush and compress EPS foam, EPE PUR EVA and other foam materials.
The EPS foam compaction machine is controlled by a PLC-based automatic control system and peripheral circuits, and its performance is quite stable. A larger compression ratio and better quality foam cold pressed blocks can be achieved.
The volume of the material is reduced through the filter on the crusher and compressor, and then the material will fall onto the screw. The main motor will push the material forward through the screw. At the same time, the hydraulic system of the die head is closed to compress the EPS foam material. , these materials will become blocks, and the volume will be reduced by 50 times, making it easier to carry and transport. Machine Advantage
The EPS Compaction Machine can shred and compact EPS polystyrene foam materials of big size and light weight into briquette of high density and small size.It is expensive to transport loose foam materials.Cause 95% of polystyrene beads are air,so it is nessesary to compact it and transport it.
We see foam waste scattered everywhere with small volume,we can drive a truck with the compactor on truck to go everywhere to collect and compact these foam waste.
We have EPS compaction machine with motor and diesel engine powered,we have also hydraulic + screw type compact machine..Buyers can choose from our catalog.
Compact system
To get biggest compact ratio,best compact briquette quality,biggest capacity.users can install a silo on the hopper of comapct machine and a split shredder.Just as the below picture. Machine Application

FAQ
Q: What type of compact machine you have available ?
A: Hopper type with horizontal,vertical and tilt types are available.
Q: What type of powers for compact machine you have available ?
A: Motor type, diesel engine type and hydraulic type of EPS compact machine.
Q: Any screw inside the hydraulic power EPS foam compact machine
A: Yes. Principle
Machine Parameter
Model No. 300E 300H 300V 400H 400V
Brick Size 300*300mm 300*300mm 300*300mm 400*400mm 400*400mm
Capacity 150kg/h 150kg/h 175kg/h 250kg/h 300kg/h
Diesel Engine Single cylinder Single cylinder Single cylinder Four cylinders Four cylinders
18kw 22kw 22kw 48kw 48kw
L25 L32 L32 4102 4102
Turn on automatically by battery power or manually by rocker
Hopper Size 830*760mm 830*760mm 1100*800mm 1200*1000mm 1200*1000mm
Machine Size 3000*1500*1200 3000*1700*1200 3000*1700*1400 4600*1600*1600 4600*2800*1400
Machine Weight 1000 1050 1050 1600 1600
Motor Power - optional 11kw 11kw 15kw 15kw 22kw
