Plastic HDPE Thin Wall Jacket Shell Casing Pipe Extruder 110-2000mm

US$160,000.00 1 Set (MOQ)

Basic Info.

Model NO.
PE
Pipe Material
PE
Condition
New
Customized
Customized
Theory
Vacuum Calibration
Application
Industry
Type
Pipe Production Line
Material for Production
HDPE LDPE
Diameter Range
110-2000mm
Calibration Method
Vacuum Calibration
Transport Package
Standard Package for Export
Specification
ISO9001: 2008
Trademark
Huashida
Origin
Qingdao, China
HS Code
8477209000
Production Capacity
50 Sets/Year

Product Description

Plastic HDPE Thin Wall Jacket Shell Casing Pipe Extruder 110-2000mm
EFFICIENT INTELLIGENT HIGH QUALITY
HDPE jacket pipe Production line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as a protective cover of PU foam thermal Pre-insulated Pipe according to international standard.
The HDPE jacket pipe is produced by vacuum calibrating method with smooth internal and external wall, long service life, good anti-corrosion insulation and mechanical performance.
---Pipe Application: outer protective casing of PUF thermal insulated pipe, which is widely used in central heating, cooling oil&gas transmission and other industrial areas.
Features of Production line of HDPE jacket pipe
-small dimension
-high degree of automation, can be operated by one person, saving labor costs.
-a long service life.
-high-efficiency extruder gives larger output, stable performance.
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need to trim the edge.
Production range: 110-2000mm (by different models)

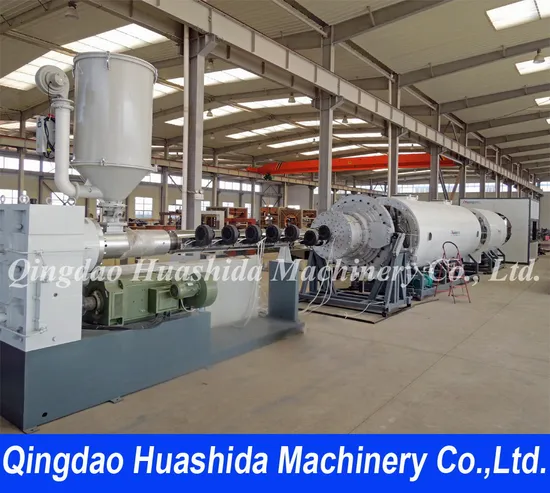

Production line composition:
-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder
-1set Vacuum calibration table
-1set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Discharging Frame
Style PE-110/600 PE-365/760 PE-655/1380 PE-960/1680 PE-1054/1860
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ365-760m Φ655-1380mm Φ960-1680mm Φ1054-1860mm
Capacity 250-350kg/h 400-500kg/h 700-900kg/h 1000-1200kg/h 1000-1250kg/h
Installed power 160kw 240kw 480kw 580kw 580kw
Length 26m 32m 36m 40m 45m

Workshop
Customers' inspection
Delivery
Welcome customers to visit our factory!
