Basic Info.
Spinning Method
Ring Spinning
Processing Material
Cotton
Producing Process
Spinning Equipment
Certification
CE, ISO9001: 2000
No. of Spindle
96,108,120,132,144,156,168,180,192
Drafting Range(Times)
4.2-12
Adaptable Counts
200-1000(Nm5-1)
Spinning Staple(mm)
22-38, 38-51, 51-65
Drafting System
3roller, 4roller
Max. Mechanical Speed(Rpm)
1500
Total Air Exhaust(M3/H)
2000
Cleaner
Upper and Bottom Positive Intermittent Revolving
Dia. of Can(mm)
400 or 500 or 600
Product Description

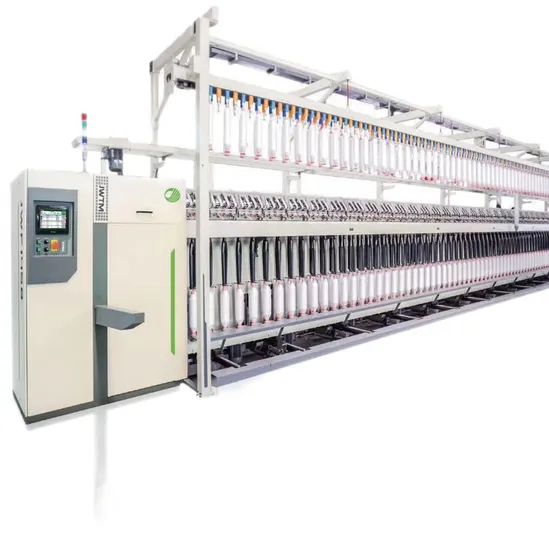

JINGWEI Brand Modle JWF1458A/JWF1457 AUTO DOFFING ROVING FRAME in textile ring spinning line
24h Online Customer Service
Product Description
The JWF1458A/JWF1457 AUTODOFFINGROVING FRAME is a full-automatic externaldoffer roving frame; lt can be used alone orin conjunction with roving transfer system toconstitute a roving and spinning unit. Themachine provides up to 216 spindles
Details Showing
1- HIGH SPEED
Using high-speed closed type flyer, by gear transmission.
2- HIGH EFFICIENCY AND SIMPLE OPERATION
All process data is stored and can be recalled up at any time.Except the drafting changegears,all of other change gears are eliminated.parameters are input directly on the touch screen.The technological parametrs are input directly on the touch screen.
3- PURSUITTHE HIGH QUALITY ROVING
The current inspecting and feedback controlling system are composed of CPU and multi rotary encoderswith high accuracy.
The digitallsation control is accomplished by the inverter control system with high accuracy. The rovingtension is strictly controlled during running by math. patterns to ensure the uniform roving tension.
DRAFTING SYSTEM
3-roller and 4-roller double short aprons drafting system are available at option.
STANDARD CONFIGURATION:
Chinese YJ-40 Spring-loaded pendulum arme.OPTIONAL CONFIGURATION:
The pendulum arm of Texparts PK1550 and Roller bearing;Suessen Leaf spring pressure pendulum arme and Roller bearing.
CLEANING SYSTEM
The perfect self-cleaning system is presented in this machine. Upper and bottompositive intermittent revolving cloth are adopted and the traveling cleaner andsuction channel are equipped.The waste combed from the bottom clearer cloth together with the flyingsaccumulated on spindle rail cover and roller beam are all blown into the suctionoutlets which are located on the back side of roller beam .Meanwhile the wastecombed from the upper clearer cloth is suck up by the traveling suction nozzle,foreffective preventing the flyings to adhere into the roving and decreasing the rovingfaults.
CREELWITH GANTRY
The guide roller is made of the aluminium alloy with the positive feeding.The closed type ball bearings are equipped with the connecting places ofthe guide roller of each staff to eliminate the false draft.
CAN LAYOUT
MAHINE LAYOUT
Product Parameters
NO. | Description | Data details |
1 | Machine direction | left hand, right hand |
2 | Size of feeding can | Dia. 400mm or 500mm |
3 | Spindle gauge (mm) | 216 |
4 | Staff (mm) | 432 |
5 | No. of spindles Per staff | 4 |
6 | No. of spindles | 204 |
7 | Machine length (mm) | 24858 |
8 | Machine width (mm) | 4100(φ400 can) 5050(φ500 can) |
9 | Spinning Staple Length (mm) | 22~38 |
10 | The length of chemical fiber (mm) | <51mm(customer selection) |
11 | Adaptable Counts (Tex) | 200~1000 (1~5Nm) |
12 | Bobbin Size (mm) | φ45×445 |
13 | Full package (mm) | φ152×400 |
14 | Draft Range (times) | 4.2~12(standard configuration 5.9~8.9) 4.2~12(5.9~8.9) |
15 | Twist range (T/M) | 18.5~80(standard configuration 23~60) 18.5~80(23~60) |
16 | Flyer speed (rpm) | (mechanical speed)1500, (roving speed)1300 |
17 | Flyer form | Suspended spindle, Closed type |
18 | Bottom Roller system | 4- Roller, short double apron system |
19 | Bottom Roller dia (mm) | Φ32 φ32 φ32 φ32 |
20 | Top Roller coated dia (mm) | Φ30,Φ30,Φ25,Φ30 |
21 | Drafting system | Texparts PK1550 |
22 | Weigh (N/ 2spindles) | 90, 120,150 150,200,250 100,150,200 100,150,200 |
23 | Roller Gauge (mm) | ~ 35~57 ~ 50~60 ~ 49~73 |
24 | Roller stand inclination | 15° |
25 | Height of roller beam (mm) | 1550 |
26 | Creel | Gantry creel with six rows of guide rollers (The dia. of can is 400mm) Gantry creel with seven rows of guide rollers (The dia. Of can is 500mm) |
27 | Inverter | Inovance TE340 |
28 | Flyer motor | 11KW |
29 | Bobbin motor | 18.7KW(1.1KW×17pc) |
30 | Rolling motor | 5.5KW |
31 | Lifting motor | 2.2KW |
32 | Suction motor | 4KW |
33 | Overhead cleaner motor | 1.5KW |
34 | The power of these motor does not need to be computed into the total power, because these motor do not work when the machine is running | Remove motor: 0.37KW The yarn lifting motor: 1.1KW Steel back to turn motor: 1.5kw (0.75KW×2) |
35 | Voltage | 380V± 10%, 50Hz, 3 phase |
36 | Color of machine | 2016 |
Company Profile
Qingdao Hongda Textile Machinery Co., Ltd (here after referred to as QDHD)is the subsidiary company ofJingwei Textile Machinery Co. Ltd. It is a large-scale backbone enterprise of textile machinery manufacture,as well as an important manufacturing base for carding machinery and auto-winder.
The Technology Center of QDHD is certified as the National Technology Center. Blowing-Cardingmachinery wins the First-Class Scientific and Technological Progress Award issued by China Textile IndustryAssociation and is the promotion program in The Ninth Five-Year Plan of the State Science and TechnologyCommission. The three leading products of QDHD-Carding Machine, Blowing-Carding Machine and Auto-winder, have all passed the ISO9001 quality system authentication, winning QDHD the honor of "PioneerEnterprise of National Quality Control".
Facing the new situation, Qingdao Hongda Textile Machinery Co. Ltd will be committed to continuouscontribution to the development of Chinese textile machinery, the technological progress of the Chinesetextile industry and the improvement of its international competitiveness by executing new initiatives andadvancing with times.
>>
