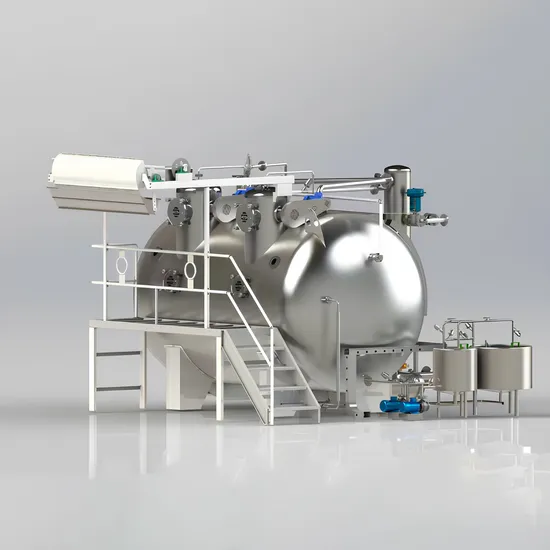

O Type Dyeing High Pressure Dyeing Industrial Dyeing Machine

Product Description

Main Features:
·Operation easy,Low Water ratio:1:4-6 ·Low consumption of water, steam and energy, total cost 10% lower than traditional technology
·Tensionless design,suit for knits, woven, terry and upholstery fabrics,high yarn count and high gsm, raw material cotton, TC,
TR ,NR, CVC, etc.
·Nozzle presure can reach 1.5kgs, so that it can avoid crabs and nother fold marks from fabrics, avoid fabric edge rolling.
·X-Y types plater, it provide fabric better folding
It adopt Tefon pipe ,make fast water flow.
·1.48m mesh plate with , it can have big fabric capacity.
Machine Specification & Advantages
O type tensionless dyeing machine with low ratio 1:4~6

Model	Nrs of Tubes	Load (kg)	length (mm)	Width (mm)	Height (mm)	MainPump	Running
						Power(KW)	Power(KW)
AR-O2	2	700	6700	5700	3750	7.5	19
AR-O3	3	1050	8200	5700	3750	15	26
AR-O4	4	1400	9700	5700	3750	18.5	34
AR-O6	6	2100	12700	5700	3750	30	47
AR-O8	8	2800	15700	5700	3750	45	56

New technology "uniform flow system" , The special distribution device can perfectly distribute and transfer the dyes to each nozzle everagely.

The in-line centrifugal pump with elastic joint of trasmission ensures a greater mechanical stability and therefore a greater duration of the bearings and mechanical seal as well as an easier maintainability of the pump.
Integrated nozzle with hydraulic device and special shape of fabric chamber to ensure the best placement and operation of the fabric in the cylinder, whether ultra light or heavy fabric can be deal with.
"S-type" fabric pass through pipe with coaxial nozzle. Flexible tube is a sunken square structure, which can make the fabric loose and move forward naturally when fabric passing through the guide tube, thus reducing fabric quality problem such as crabs mark.Integrated nozzle design, can effectively reduce the tension between the nozzle and cloth.
Company Profile

ZYTT is an experienced trading and manufacturer from last 25years,it's located in Wuxi,JiangSu Province,China, 40min from Shanghai railway station.
ZYTT start from trading for all kinds of textile plant machine, such as blanket line, bed sheet line, we realized that the dyeing machine is more important for dyeing plant, and we created our own brand for dyeing machine at top quality,

ZYTT becomes an expert in the field of textile dyeing machines/pre-treatment and finishing machine. We make customermized design according our customer's requirement,our aim is to bring biggest value to customer.

ZYTT dyeing machine has been well received by domestic and foreign customers.On the basis of 20 years professional manufacturing experience,our brand is wellknown in international market in the world.

We want to show high quality textile machine to all countries.
We want to spray china cultures to all countries.
We want to break customer mind "China texitle machine is low quality".
We want to be top brand in textile machine from China.
Lets Grow up with customer together.

---
