ISO-Approved Excavator Reach Long Reach Arm for Zx240-3 Scope 19000mm (LDB200-2)

Product Description

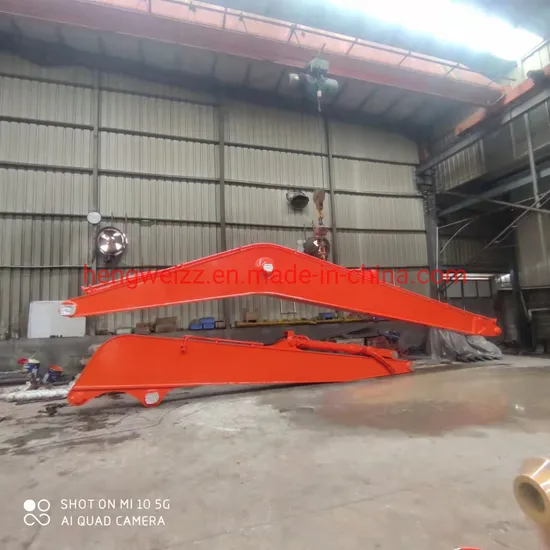

Excavator Long Boom And Arm
(1)Product:
(2)Working Dimension:

	Excavator tonnage	T	20-25t		30-36T			40-47T
	Total length	mm	15200	18000	18000	20000	22000	20000	22000	24000
	Max digging radius	mm	15000	17300	17300	19200	21000	19200	21000	23000
	Max cut depth	mm	10300	12500	12600	14500	16000	14500	16000	17000
	Max cut depth vertically	mm	9500	11600	11700	13600	15200	13600	15200	16200
	Max cut height	mm	12600	15300	15300	17300	18500	16200	17500	18750
	Max unloading height	mm	10300	13000	13000	15000	16000	14000	15000	16000
	Min rotate radius	mm	4750	5100	5100	6200	6200	6200	7750	7750
	Boom length	mm	9100	10500	10500	11500	12500	11500	12500	13350
	Stick length	mm	6100	7500	7500	8500	9500	8500	9500	10650
	Stick max cut force(ISO)	KN	83	65	118	95	80	170	139	109
	Bucket max cut force(ISO)	KN	150	99	153	153	153	153	153	153
	Bucket capacity	m3	0.5	0.4	1.2	0.7	0.5	1	0.8	0.7
	Bucket rotate degree	deg	170	170	170	170	170	170	170	170
	Folding length	mm	13000	14500	15000	16000	17000	16000	17000	18000
	Folding heigtht	mm	3050	3100	3300	3350	3400	3450	3480	3500
	Extra Counter weight	T	1	3.5	4	5	6	5	6	8

(3)Features:
1.Material )The material used in the excavator long arm is Q355B )If other steel is required, please contact us, Q690D customized service
2.Material processing
Use a plasma cutter to ensure part flatness
3.Internal vie
Spaced by vertical and horizontal reinforcement plate at regular interval
4.Product making
Welding
A.) Welded with mixed gas between argon and carbon dioxide. Argon content:80%.Carbon dioxide content:20%.
B.) Welded by auto-welding machine .
Sandblasting
A.) The surface of the workpiece can obtain a certain degree of cleanliness and different roughness, so that the mechanical properties of the workpiece surface are improved, thus improving the fatigue resistance of the workpiece, increasing the adhesion between it and the coating, and prolonging the coating film. Durability, also good for paint leveling and decoration.
5.Product packaging and Shipping
6.Company Services
1, Long reach boom are use for dredging rivers port construction, railway construction and groundwork construction, with high extensive operation scope, high efficiency and high security.
2, Our company was founded in 2008 with more than 10 years of experience, production line engineers have more than 10 years of data and experience for all brands of excavators designed and customized long range booms.
3, Applicable for all the excavator model,OEM service is also available.
4, Advanced manufacturing process, Technique is in the line with global standards.
5, We have all the installation dimensions of most excavator, we can customize this long reach boom for your excavator.
6, Before welding, we have use big edge milling machine mill(taper process) the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance. Also the inside have strength plate make it more stronger.
7, If necessary, extra pipeline can be added to suit to some extra application.
8, Stick cylinder of the long boom, can use your original stick cylinder to save the cost, if you need the stick cylinder, we also can prepare for you.
9, Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.
10, Welding is protective-gas welding, the protective gas is 80% Argon and 20% CO2 mixed. This is golden standard for protective gas.
11, Before welding, we have use big edge milling machine mill the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance.
12 .We can customize the arm for all kinds of excavator as per your request. Just let me know your request.
13. If you need, some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application, just let me know.
14. Not make the bucket for this extender arm as customer request. But if you need us prepare the bucket for you, that's ok.

MODEL	LDB120	LDB200-1	LDB200-2	LDB300	LDB350-1	LDB350-2	LDB450
boom length(mm)	7100	8220	10000	10000	11000	12000	13000
arm length ( mm)	5900	7160	8000	8000	9000	10000	11000
Weight(kg)	3000	4000	4200	5200	6000	6500	7000
Max dig depth(mm)	9000	11340	12200	12200	14500	16100	18000
Max. extensive scope(mm)	12500	15100	17600	17600	19600	21600	23600
Max. dig height(mm)	11300	12510	13500	13720	14920	16100	17300
folding height(mm)	2900	2980	3040	3210	3210	3400	3400
bucket capacity(m3)	0.3	0.5	0.4	0.4	0.5	0.6	0.6
Suit Excavator tonnage(ton)	12	20	20	30	35	35	45

---
