Plastic Injection Molding Machine 530 Ton for Fan Blade Making Machinery

Product Description

Full Automatic Injection Mini Molding Plastic Mold Machine for Bottle Cap
Product Parameters

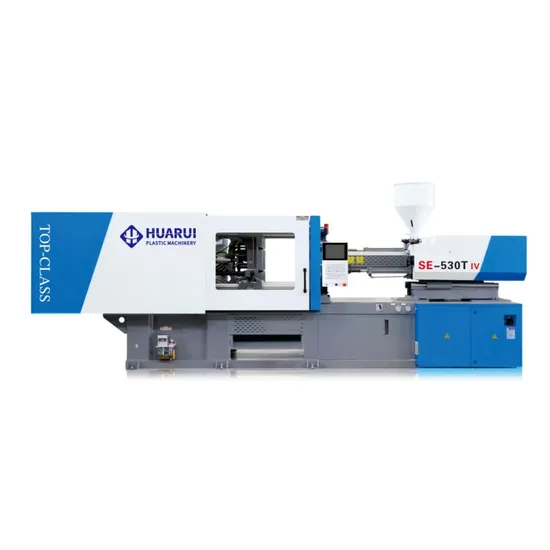

SE-530T IV Plastic Injection Molding Machine Information
Item		Unit		A		B		C
Screw diameter		mm		80		85		90
Theoretical shot volume		cm³		2187		2468		2767
Shot weight (PS)		g		1990		2246		2518
Shot weight (PS)		oz		70.2		79.2		88.8
Length/Diameter ratio		L/D		23.4		22		20.8
Injection pressure		Bar		1912		1700		1510
Injection rate		cm³/sec		509		574		643
Max.screw speed		rpm		140
Clamping force		KN		5300
Max.daylight		mm		1275*1225
Open stroke		mm		850
Space Between Tie-bars		mm		870*820
Min mould dimension		mm		320
Mould thickness range		mm		870
Ejector force		KN		120
Ejector stroke		mm		220
No.of ejector pins		unit		13
Max.motor power		KW		61
System pressure		MPa		175
Heater input power		KW		45
Oil filling capacity		L		700
Machine size		M		9.2*2.2*3.0
Net weight		KG		22000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
