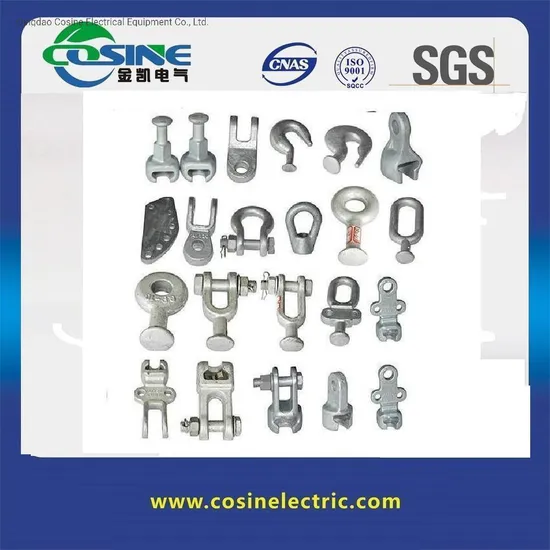

Overhead Transmission Pole Line Hardware Fitting Socket-Ball

Product Description

Overhead Transmission pole line hardware fitting socket-Ball is our normal products. the material of Transmission pole line hardware fitting is Forged steel, Transmission pole line hardware have exported to Russia, UK, Italy, Morocco, India, Spain, USA, and etc.
We can produce Transmission pole line hardware fitting according to your drawing .
Welcome your enquiry.

REF No.	Minimum Failing Load	Socket Designation	A mm	B mm	C mm	RDmax mm	E mm	F mm	RGmin mm
15/84A	70KN	16B	59	---	18.5	23	18	8	38
28/37A	125KN	20	76	41	18.5	32	22	9.5	--
42/37A	190KN	24	76	41	21.5	35	24	13	--
42/46A	190KN	24	121	--	28.5	35	24	13	45
42/104A	190KN	24	105	--	28.5	46	32	22	64
84/37A	400KN	28B	105	--	28.5	46	32	22	64

All our line hardware are made strictly test before deliery ,which will assure us to offer good quality to client. Our test equipment :
Most of our line hardware and line fittting are made in forgred-steel. our forging equipment is as following:

---
