Large Crushing Capacity Stone Crusher Machine with Low Price

Product Description

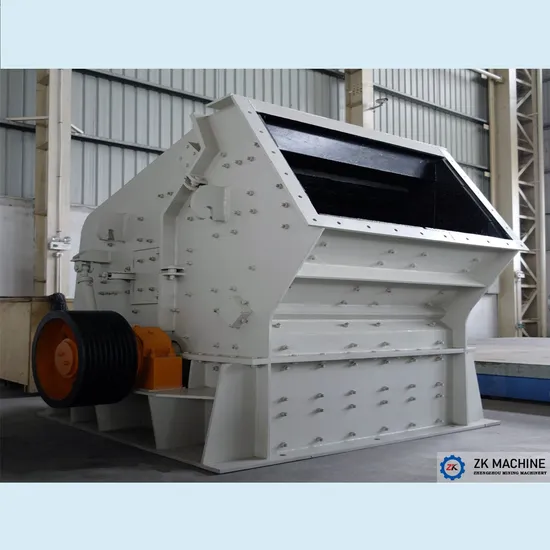

Large Crushing Capacity Stone Crushing Machine
High EfficiencyStone Crushing Machine
1)Firm structure
2)Stable performance
3)Large capacity
4)Easy adjustment
5)Perfect pre-service and After-service
Stone Crushing Machine Description
The Stone Crushing Machine zk company offers are ideal for primary and secondary crushing. Stone Crushing Machine is one of the main types of primary crushers in a mine or ore crushing process plant and also is one of the most widely used crushing equipments in mining industry. Zk is a famous Stone Crushing Machine manufacturers in China, and sold crusher machines to all over the world. This series of Stone Crushing Machine can reach the crushing ratio of 4-6 and the shape of final product is even. Because it is primary crusher, Stone Crushing Machine is designed for long life service with minimum maintenance for hard, tough, abrasive material and overload high capacity
Stone Crushing Machine Working Principle
PrimaryStone Crushing Machine is typically of the square opening design, and secondaryStone Crushing Machine is of the rectangular opening design. Stone Crushing Machine reduces large size rocks or ore by placing the rock into compression. A fixed jaw board, mounted in a "V" alignment is the stationary breaking surface, while the movable jaw exerts force on the rock by forcing it against the stationary plate. The space at the bottom of the "V" aligned jaw plates decide the crusher product size gap, or the size of the crushed product from the jaw crusher. The rock remains in the jaw until it is small enough to pass through the gap at the bottom of the jaws.

Mode	Size of Feed Opening ( mm)	Max Feed Size ( mm )	Discharge Range Opening (mm )	Capacity(m 3 /h)	Motor Power(Kw)	Weight(t)
PE-250× 400	250× 400	210	20-60	3-13	15	2.8
PE-400× 600	400× 600	340	40-100	10-35	30	6.5
PE-500× 750	500× 750	425	50-100	25-60	55	10.6
PE-600× 900	600× 900	500	65-180	30-85	55-75	15.5
PE-750× 1060	750× 1060	630	80-180	72-150	90-110	28
PE-800× 1060	800× 1060	680	100-200	85-143	90-110	30
PE-870× 1060	870× 1060	750	170-270	145-235	90-110	30.5
PE-900× 1060	900× 1060	780	200-290	170-250	90-110	31
PE-900× 1200	900× 1200	780	95-255	100-240	110-132	49
PE-1000× 1200	1000× 1200	850	195-280	190-275	110-132	51
PE-1200× 1500	1200× 1500	1020	150-300	250-500	160	100.9

---
