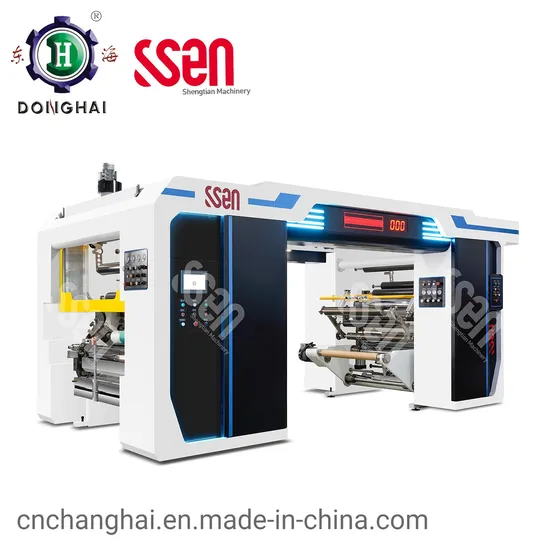

Ssen Sen-a Model High Speed Solventless Laminating Lamination Machine Solventfree Lamination Machine Price China Xintian Machinery Factory Direct Supply 500mpm

Product Description

Machine basic parameters

Model Parameter	SEN1050A	SEN1350A	SEN1650A
Max.material width	1050mm	1350mm	1650mm
Max.unwind diameter	φ800mm	φ800mm	φ800mm
Max.rewind diameter	φ800mm	φ800mm	φ800mm
Total power	53kw	58kw	62kw
Water heater included	3sets	3sets	3sets
2-component glue mixer	1set	1set	1set
G.Weight	11000kgs	13000kgs	15000kgs
Dimension(L*W*H)	5800*3050*3050mm	5800*3350*3050mm	5800*3650*3050mm

Substrate Types

Laminating substrates	Thickness of substrates		Coating substrates	Thickness of substrates
BOPP	12-80μm		BOPP	12-80μm
PETP	8-30μm		PETP	10-30μm
LDPE,LLDPE	20-200μm		LDPE,LLDPE	30-200μm
OPA	12-18μm		OPA	12-18μm
NYLON CAST	20-80μm		NYLON CAST	30-80μm
ALU(Foil)	6.3-40μm		PP CAST	60-150μm
PP CAST	20-150μm		PAPER	40-150gsm
COEX FILM	20-200μm
PAPER	40-150gsm

And other films with the same properties as the above substrates.
Packaging & Shipping
Company Profile
After Sales Service
As the ultimate manufacturing factory, we not only provide you competitive factory price, visible capital goods,but also more invisible values including:

1) In-time delivery
2) One year quality guarantee and overseas technical service
3) Competitive factory price without any third party involved
4) Tailored solutions for specific demand and requirements provided
5) Quick delivery for spare parts
6) Fast response to customer's confusions
7) Keep customers updated with the production steps
8) Strict quality control during production and do inspection before delivery
9) Instant remote technical consultation and operation guidance
10) Shipping following up until goods arrives at destination safely

---
