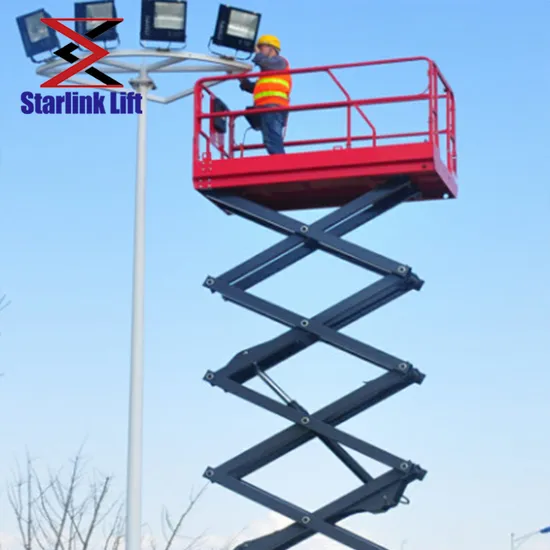

Electric Mobile Aerial Work with Hydraulic Self Propelled Scissor Lift

Product Description

Product Description
The self-propelled hydraulic scissor Lift has an automatic walking function. It can be raised and lowered freely under different working conditions without the need for external power supply or external power traction. The walking and steering of the equipment can also be completed by only one person.
Self -propelled scissor lift id mainly used to lift workers to high place to repairs,maintenance ,cleaning,installation and so on. People could drive the lift easily to the right working area.
Product Parameters

Model NO.		Driven Type	DC
Running Mode	Moving	Feature	Explosion-Proof
Certification	CE, ISO 9001	Color	Customized
Voltage	24V-48V	Load Capacity	200kg-450kg
Lifting Height	4.5m-10m	Working Height	6.5m-12m
Grade Ability	25%	Platform Size	2270*1120mm
Overall Size	2480*1390*(1745-1995)mm	Weight	2400kg-2840kg
Extend Platform	900mm	Charging Voltage	100V-240V
Transport Package	Plywood Case	Specification	High-duty steel structure
Trademark	Starlink	Origin	China
HS Code	84289090	Production Capacity	1000PCS/Year

Detailed Photos
Tilt Sensing
Make sure the device is level and can be raised and lowered normally
Tires
Polyurethane wheels, low noise, no resistance when walking, and no damage to the ground
Countertop
Extended extension table, extra large work surface, increased safety factor
Lower Control
multiple control methods, adding a power key, and retaining power storage during placement
Hand Control
using an integrated computer control handle, which can directly control the lifting and walking of the equipment
Power Supply
Qiu Jian battery is used, with sufficient storage capacity and strong equipment operation endurance.

Installation Example
Company Profile
Shandong Starlink Heavy Industry Machinery Co., Ltd. is located in Jinan City, Shandong Province, China, is a professional production and development of various lifting platform enterprises, the main products are Hydraulic Scissors lift, Trailer boom lift, Home Lift and so on. Over the years, our company to "quality first, customer first, integrity-based" as the business philosophy, has become one of the leading domestic hydraulic equipment manufacturers.
All products produced by our company are in line with national and industry standards, and has passed ISO9001-2000 quality system certification, product quality and performance are recognized, products not only sell well in China, but also exported to more than 50 countries in the world, mainly distributed in Europe, the United States, the Middle East, Southeast Asia and South Africa. All products an be designed and manufactured according to your requirements, welcome to sample customized.
Packaging & Shipping

Exhibition

---
