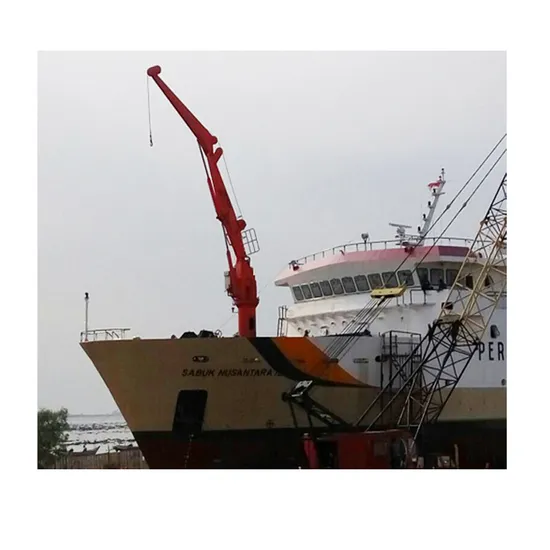

Ship Marine Hydraulic Deck Telescopic Offshore Crane

US$20,000.00-100,000.00 1 Set (MOQ)

Basic Info.

Model NO.
TRUST
Condition
New
Rated Loading Capacity
50t
Rated Lifting Moment
Customer Request
Max. Lifting Load
50t
Name
Ship Cargo Crane
Transport Package
Export Standard
Specification
Meet ship′s requirements
Trademark
Trusttrade
Origin
China
HS Code
84263000
Production Capacity
10sets/Month

Product Description

Product Description
Basic features:
?Self contained unit with integrated power pack
? Simple mounting the pedestal to deck by welding or bolts and connecting the power cable
? No electric slipring
? Fail-safe brakes on all movements
? Welded box boom (jib) for low maintenance
? Maintenance-free jib- and cylinder bearings.

Standard equipment:
? Shot blasted to SA2,5 plus 2 layers of marine paint
? Pedestal height between 1.1 and 1.5 m
? Class certificate on the pedestal
? Control platform on the crane (left or right-hand side)
? Full documentation/Owner's manua
? Working radius and lifting capacity (SWL) according to customer's request.

Technical parameter:
1) Safe working load: 35tons
2) Working range: 28m
3) Hoisting speed: 20m/min
4) Lifting speed (light load): 20m/min
5) Lifting height: 40m
6) Luffing time: 55s
7) Rotary speed: 0.8r/min
8) Slewing angle: 360 degre
9) Allowable working condition: List ≤ 5° , trim ≤ 2°
10) Motor power: 160Kw (S1), 260Kw (S6)
Speed: 1480rpm
Voltage: 380V
Frequency: 50Hz TYPE SWL
(t) OUT-REACH
(m) HOIST SPEED
(m/min) LUFFING TIME
(sec) SLEWING SPEED
(r/min) POWER REQ.
(KW)
YQJ25/20 25 20 20 60 0.65 180
YQJ25/25 25
YQJ25/30 30
YQJ30/20 30 20 19 70 0.65 220
YQJ30/25 25
YQJ30/30 30
YQJ35/20 35 20 18 80 0.55 250
YQJ35/25 25
YQJ35/30 30
YQJ40/20 40 20 16 90 0.45 250
YQJ40/25 25
YQJ40/30
