| US$500.00-800.00 | 1 Ton (MOQ) |

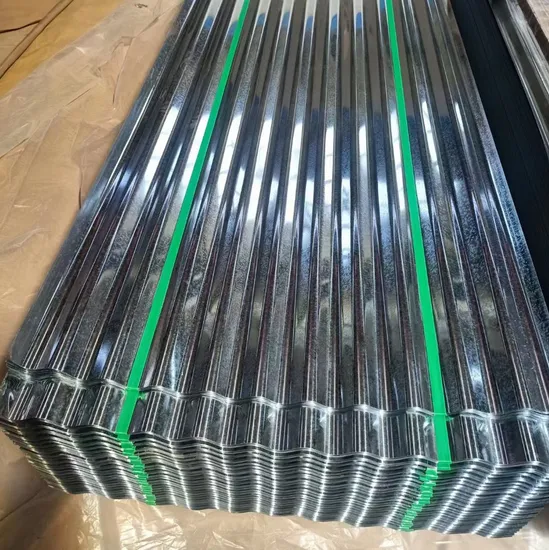

| Name | Prepainted Colored Galvanized Iron Roofing Sheet Price, Zinc Aluminium Gi Corrugated Steel Sheet, Cheap Metal Roof Sheet | |
| Type of substrate | Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled steel, Aluminum | |
| Thickness | 0.125-2mm | |
| Tolerance | Thickness: ± 0.01mm | |
| Width | 600-1250mm ( Normal:1250, 1200,1000,914 mm) | |
| Top Paint | 10-25 micron(Normal:10-12mic) | |
| Back paint | 5-12 micron(Normal:5-7mic) | |
| Coating | Zn coating | AZ coating |
| 30-400gsm | 30-400gsm | |
| Coil weight | 3-5 tons or as your requirement. | |
| Coil ID | 508/610 mm | |
| Grade | Galvanized | Galvalume |
| SGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z,SGCE/DX54D+Z, SGCH....... | DX51D+AZ, DX52D+AZ, DX53D+AZ, DX54D+AZ,SGLCC,SGLCD,SGLC4 40,SGLHC........ | |
| Coating type | Top paint: PE, SMP, HDP, PVDF, PU | |
| Functions: Decorative, Machinability, Weather resistance, Scrath resistance, Stain resistance, Chemical resistance, Adhesion resistance | ||
| Primer paint: Polyurethane, Epoxy, PE | ||
| Functions:Machinability, Corrosive resistance, Adhesion, Scrath resistance | ||
| Back paint: Epoxy, Modified polyester | ||
| Functions: Scrath resistance, Bending adhesion, Corrosive resistance | ||
| Type of coating process | Front: Doulbe coated & double drying | |
| Back: Double coated & double drying, single coated & double drying | ||
| Double coated & double drying is used for corrugated sheet | ||
| Double coated & single drying is for sandwich panel | ||
| Packing | Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet. | |
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings | |
