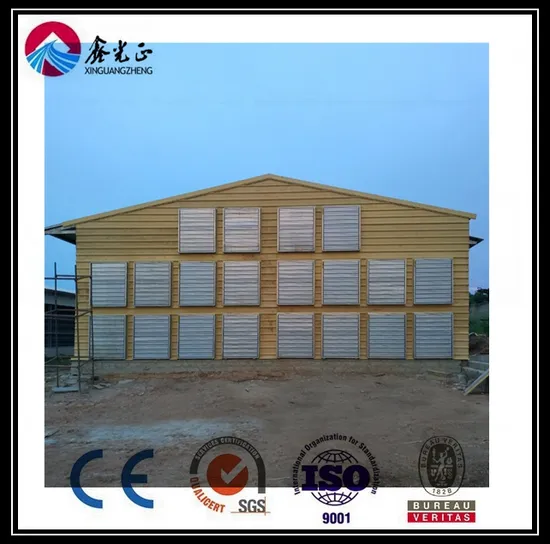

Low Price Professionally Designed Steel Structure Chicken House and Equipment (BYPH-220530001)

Product Description

Low Price Professionally Designed Steel Structure Chicken House and Equipment(BYPH-220530001)
Product details
Our automatic poultry farm equipment consists of:
1.Automatic main feed delivery system;
2.Automatic pan feeding system;
3.Automatic nipple drinking system;
4.Ventilation system;
5.Environment control system;
6.Cooling pad system;
7.spraying system;
8.heating system
9.curtain system
Generally the height of poultry houses is between 2.5m-3.5m (at eaves). The width of the poultry houses is decided according to then layout of equipment inside and cannot be too large considering ventilation. Steel structure poultry houses are usually designed with the width of 8-15m. Length is better no larger than 140m.
projet show:

Item	Materials	Remark
Steel Frame	1 H section column and beam	Q345 steel, paint or galvanization
	2 wind resistant column	Q345 steel,paint or galvanization
	3 Roof purline	Q235B C/Z section galvanized steel
	4 Wall purline	Q235B C/Z section galvanized steel
Supporting system	1 Tie bar	Q235 round steel pipe
	2 knee brace	angle steel L50*4,Q235
	3 roof horizontal bracing	φ20,Q235B steel bar, paint or galvanized
	4 column vertical bracing	φ20,Q235B steel bar, paint or galvanized
	5 purline brace	Φ12 round bar Q235
	6 knee brace	angle steel, L50*4,Q235
	7 casing pipe	φ32*2.0,Q235 steel pipe
	8 gable angle steel	M24 Q235B
Roof and wall protecting system	1 Wall and roof panel	corrugated steel sheet/sandwich panel
	2 self tapping screw
	3 Ridge tile	color steel sheet
	4 gutter	color steel sheet/galvanized steel/stainless steel
	5 down pipe
	6 corner trim	color steel sheet
Fastener system	1 Anchor bolts	Q235 steel
	2 Bolts
	3 Nuts

OURS SERVICES:
Our excellent design team will design the steel structure workshop warehouse for
you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
