High-Quality Kraft Paper Bowl Production Machine for Salads

Product Description

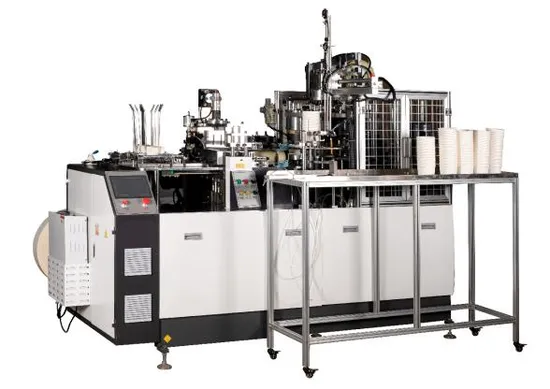

YB-W35 Paper Bowl machine
------Quotation: The ex factory price of yb-w35 paper bowl machine including tax and wooden box packaging is 129000 RMB.
------Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
------Delivery time: 40 days after receive the payment of deposit
------Payment: Deposit 30% by T/T in advance, delivery against payment of 70% balance after qualified acceptance
------Leave factory testing: before leaving factory, equipment should be tested by both parties. Test material offered by buyer
------Installation: we will send 1 technicians for machine's installation and debugging according to customer's requirement; the technician's board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD100.For each technician/one day, estimate 5-7 working days
------Guarantee period: Guarantee period is 12 months after getting the machine
------The supplier shall provide the service:(after pay the machine)
------the supplier to send adjustment of installation and commissioning
------the supplier direct buyer's technical personnel operating the machine
------The buyer shall provide the facilities and preparations:(Delivery machine to finish)
------foundation and adapter power supply water and compressed air pipe and related projects
Reliability:
YB-W35 intelligent medium-speed paper bowl forming machine has the advantages of high performance, high efficiency and high quality;
The integral steel body and the auto oil lubrication system ensure long-term normal and stable operation of the machine
Energy efficient:
The advanced high-precision open cam drive and gear drive make it more accurate and stable; Servo tracking bottom paper feeding locks the size of the bottom paper , which effectively saves raw materials;
Humanizing:
The man-machine interface PLC system controls the long-term stable operation of the whole machine.
Technical parameter:

Model	YB-W35 automatic paper bowl forming machine
Cup size	20-50oz(mould can be changed as the requirements of clients)
Raw materials	Single /Double PE coated paper
Paper weight	140-350gsm
speed	60-75pcs/min
Power source	380V 50Hz
Total Power	4.8KW
Weight	2400KG
dimension	2450 x1300 x1750mm;
L*W*H
Air pressure requirements	0.6Mpa, output :0.6 m3/minute
Machine should work with the air compressor

Specifications details of machine :
1.Multiple times Paper feeding: Paper feeding three times, multiple adjustments to avoid unevenness on both sides of the paper cup fan.
2.Sensors detection: the machine is controlled by encoder and sensors which ensure that a paper fan matches with a cup bottom to avoid waste at the same time. Fault alarm,automatic shutdown.
3.PLC control system: The machine uses PLC control to improve intelligence and make the stroke more precise and accurate , all the working parameters can be setup on the control panel. Easy to operate and adjust the parameter.
4.Ultrasonic cooling fan: multiple fans operate at the same time to increase heat dissipation capability and speed up cooling, so that the machine maintains an appropriate temperature during the running.
5.Automatic oil lubrication system: The machine automatically lubricates each location of key moving parts by copper pipes, saving labor and making the machine life longer service life.
6.Bottom waster paper removal: Using the conveyor belt to transfer the waste paper. Avoid waste paper falling into the inside of machine when the machine is on running , which is difficult to clean and affects the work of the machine.
7.Grooved wheel and full gears drive system: The inside of the machine is connected by the grooved wheel and gears , which make the connections of various parts closer, and the connection parts of machine are not easy to get loose during the running of the machine. It also makes the cup forming process more accurate ,stable, and less troubles .
8.bottom paper directly punching and feeding : in the normal design, the complicated suction bottom and paper feeding process makes the bottom turning over easily . The machine is changed to use direct punch bottom feeding method in one step to avoid bottom turning over .
Spare parts list:

Name	Quantity
Electrical heating rod	1pcs
Adjustable spanner 10inch	1pcs
Small Springs	3pcs
Preheat heating collar	each 1pc
Heater ring	2 pcs
Bearing 5204 + Knurling wheel	1set
inner hexagonal spanner	1set
open-end wrench 8-10 12-14 17-19 22-24	1set
foot-screw M18	6pcs
Oil Gun	1pcs
Neon-electroscope	1pcs
Screwdriver(+)	1pcs
Hammer	1pcs
Operation Handle	1pcs
Electrical tape	1pcs
offset ring spanner 12-14 17-19	each 1pcs
Nipper Pliers	1pcs
Suckers	3pcs
inner hexagon screws 6,8,10,12 each 2pcs	8pcs
12 Nut flat washer 12 nut 5pcs	10pcs
Operation manual	1pcs
Inverter manual	1pcs
