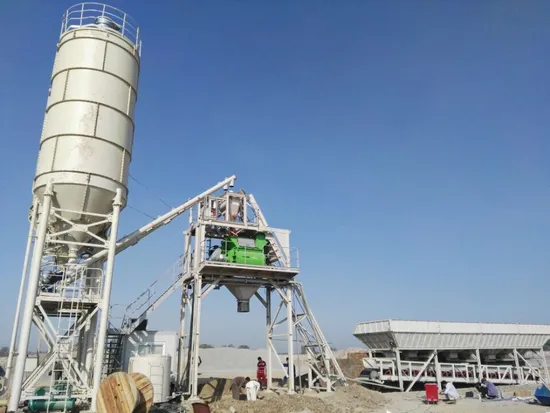

Concrete mixing plant is a kind of automation equipment that automatically weighs multiple raw materials (aggregate, gelatinizing materials, water and liquid additive) as per a formula, mixes through forced mixer and produces finished concrete meeting requirements.
| Items | Parameters | Remarks |
| Theoretical production rate | 90 m3/h | Cycle period per pan time: 60s
Each pan: 1.5 m³ |
| Mixer type | Twin-horizontal shaft forced blade type | |
| Nominal volume of mixer | 1500 L | |
| Volume of aggregate silo | 3×10 m3 | |
| Volume of powder silo | 2×100 t | Density counted as per 1.3t/m3 |
| Volume of additive bin | 3 t | Density counted as per 1.0t/m3 |
| Weighing range and accuracy of aggregate | (500~4000)±2% kg | Density counted as per 1.4t/m3 |
| Weighing range and accuracy of cement | (200~800)±1% kg | Cement density counted as per 1.3t/m3, admixture density counted as per 0.9 t/m3,powder adopting accumulative weighing |
| Weighing range and accuracy of admixture |
| Weighing range and accuracy of water | (100~400)±1% kg | Density counted as per 1.0t/m3 |
| Weighing range and accuracy of additive | (10~30)±1% kg | Density counted as per 1.0t/m3 |
| Max. diameter of aggregate | ≤Φ60 mm | |
| Discharge height | 4.0 m | Material receiving type: mixer truck |
| Installed capacity | About 138 kW | |
