Chinese Brand Xc760K New Mini Skid Steer Loader with Attachments for Sale

Product Description

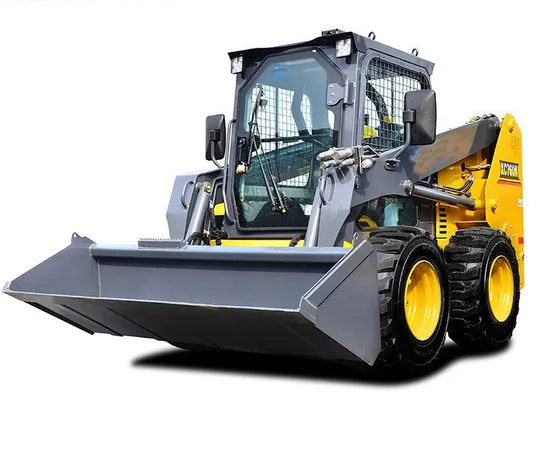

1 ton mini skid steer loader XC760K
XC760K with strong power and rich attachments, the skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
1. Strong and Efficient Power Transmission System * The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
* The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.
* The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

2. Solid and Reliable Design
The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realizereasonable stress distribution.
3. Flexible Operations
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.
4. Incomparable Multi-Functionalities
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.
Product Paramenters

Description		Unit	Parameter value
Rated load		kg	1080
Tipping load		kg	2160
Operating weight		kg	3450	3700	3650
Maximum breakout force		kN	22
Engine	Rated power	Hp/kw	82.2/61.3	80/60	80/60
	Rated speed	rpm	2500	2300	2400
	Cooling mode		Water-cooling
Performance parameter	Operation mode		Pilot hydraulic control & multi-function electronic control
	Tire standard		12-16.5
	Maximum speed	Km/h	12.5
Hydraulic system	Hydraulic flow rate	L/min	95	87.4	91.2
	Optional large flow		142.5	131	136.8
	Hydraulic pressure	bar	210
Maximum operating height		mm	4180
Bucket hinge pin height		mm	3205
Cabin top height		mm	1960
Maximum horizontal height of bucket bottom		mm	2997
Length without bucket		mm	2660
Length with bucket		mm	3610
Toppling angle		°	40
Maximum unloading height		mm	2450
Ground-bucket angle		°	30
Rotating angle of bucket at highest point		°	83
Unloading distance		mm	570
Wheel base		mm	1188
Departure angle		°	25
Ground clearance		mm	205
Front radius of turning circle (without bucket )		mm	1320
Front radius of turning circle (with bucket)		mm	2230
Rear radius of turning circle		mm	1715
Length of tail		mm	1055
Wheel track		mm	1500
Tire edge width		mm	1807
Bucket edge width		mm	2000
Bucket capacity (stacking height)		m³	0.6
Bucket capacity (tiling)		m³	0.47
Diesel tank capacity		L	95
Capacity of hydraulic oil tank		L	70

---
