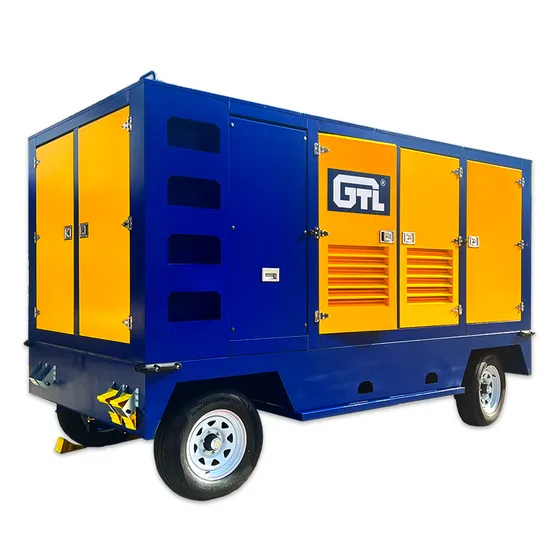

Gtl Power 55cfm to 1600cfm Diesel Screw Portable Air Compressor

Product Description

General Features

Standard Configuration

Suction valve Lubricating oil filter Oil thermostatic valve Solenoid valve Vertical air/oil tank 55°C radiator
Pressure regular valve Air/oil separator Lubricating oil radiator Safety valve Emergency stop button Air filter of the engine Minimum pressure valve Lockable battery isolator switch Air filter of compressor Vent valve Powder-coated canopy 24V sealed for life maintenance-free battery Shuttle valve Fuel tank for 8 hours running

Feature&Benefit
Feature					Benefit
Pressure selection and control					Easy pressure setting
Flow selection and control					The working pressure and airflow rate can be adjusted according to the size of air consumption without wasting any diesel
The twin-screw rotor is directly connected with the diesel engine by a highly flexible coupling					Outputting more air with less energy consumption, featuring high reliability, longer service life, and low maintenance cost.
The two-stage air filtration system					The total efficiency of air filtration reaches 99.8% ensuring the compressor to not be infringed by dust and dirt particles and longer service life of the engine
High-temperature resistance design					Able to run for a long time under extreme cold or hot temperature from -20ºC to 50ºC
One-button start, clear operational parameters					Operators don't have to go through long-term professional training, and unattended operations can be achieved.

Application areas
Field			Application			Nominal Working Pressure(bar)		Free Air Delivery Range(m3/min)
General Construction (building sites, road maintenance, bridges, tunnels, concrete pumping and shotcreting)			Hand-held pneumatic breakers			7~14		5~13
			Jack hammers
			Air guns
			Shotcrete equipment
			Pneumatic wrenches
			Nut runners
Ground Engineering Drilling (basement and foundation excavation for apartment blocks and other buildings)			Pneumatic rock drills			7~17		12~28
			Block cutters
			Dewatering pumps.
			Hand-held pneumatic breakers
Utility, Abrasive Blasting (shipyards, steel construction and large renovation jobs)			Sandblasting (remove rust, scale, paint)			7~10		10~22
Blast Hole Drilling (aggregate production for construction stabilization, cement production in limestone quarries and open pit mining)			Rock drills			14~21		12~29
			Dewatering pumps
			Hand-held breakers
High Pressure Drilling (drilling for water wells and foundations for high-rise buildings, along with geotechnical/geothermal applications)			Water well drilling			20~35		18~40
			DTH drilling
			Rotary drilling
Selection table
Small Series
Small Series	FAD		Pressure		Engine model	Dimensional Date(mm)
	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model						with tow bar	without tow bar
MDS55S-7	1.55	55	7	101.5	D902	2925	1650	1200	1200	600
MDS80S-7	2.24	80	7	101.5	D1005	2925	1650	1200	1200	630
MDS100S-7	2.8	100	7	101.5	V1505	2925	1650	1200	1200	640
MDS125S-7	3.5	125	7	101.5	V1505	3065	1800	1500	1350	810
MDS130S-8	3.7	132	8	116	JE493	3065	1800	1500	1350	810
MDS185S-7	5.18	185	7	101.5	JE493	3200	1900	1740	1660	950
MDS185S-10	5.18	185	10	145	JE493	3050	1900	1740	1660	950
Middle Series (Low&Medium pressure)
Middle Series (Low&Medium pressure)	FAD		Pressure		Engine model	Dimensional Date(mm)
	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model						with tow bar	without tow bar
MDS265S-7	7.42	265	7	101.5	JE493	3629	2200	1700	1470	1200
MDS300S-14	8.4	300	14	203	4BTA3.9	3850	2600	1810	2378	1800
MDS350S-10	9.9	354	10	145	4BT3.9	3850	2600	1810	2378	1800
MDS390S-7	11	393	7	101.5	4BTA3.9	3850	2600	1810	2378	1800
MDS390S-13	11	393	13	188.5	QSB4.5	3850	3100	1810	2378	1980
MDS429S-7	12	429	7	101.5	4BTA3.9	3850	2600	1810	2378	1800
MDS429S-14	12	429	14	203	QSB4.5	3850	3100	1810	2378	1980
MDS500S-14	14.1	504	14	203	6BTAA5.9	4550	3600	1810	2378	3100
MDS690S-14	19.3	689	14	203	QSB6.7	4950	3300	2170	2620	3500
MDS720S-10	20.2	721	10	145	QSB6.7	4950	3300	2170	2620	3500
MDS750S-12	21	750	12	174	QSB6.7	4950	3300	2170	2620	3500
MDS786S-10.3	22	786	10.3	149.35	QSB6.7	4950	3300	2170	2620	3500
MDS820S-14	23	821	14	203	6LTAA8.9	5300	4200	2170	2630	5200
MDS850S-8.6	24	857	8.6	124.7	6CTAA8.3	5300	4200	2170	2630	4600
MDS900S-7.1	25.3	904	7.1	102.95	6CTA8.3	5300	4200	2170	2630	4600
Middle Series (Medium&High pressure)
Middle Series (Medium&High pressure)	FAD		Pressure		Engine model	Dimensional Date(mm)
	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model						with tow bar	without tow bar
MDS460S-17	13	464	17	246.5	6BTAA5.9	4600	3500	1800	2230	3500
MDS620S-17	17.4	621	17	246.5	6LTAA8.9	5300	4200	2170	2630	5200
MDS650S-19	18.2	650	19	275.5	QSL8.9	5300	4200	2170	2630	5200
MDS690S-20.4	19.4	693	20.4	295.8	6LTAA8.9	5300	4200	2170	2630	5200
MDS770S-21	21.6	771	21	304.5	6LTAA8.9	5300	4200	2100	2630	5280
MDS830S-18	23.2	830	18	261	6LTAA8.9	5300	4200	2100	2630	5280
MDS820S-25	23	821	25	362.5	QSM11	5300	4200	2100	2630	5600
MDS860S-20.4/17.3	24.2	864	20.4	295.8	QSL8.9	5300	4200	2100	2630	5280
	24.2	864	17.3	250.85
MDS875S-23	24.5	875	23	333.5	QSM11	5300	4200	2100	2630	5600
Large Series (Low&Medium pressure)
Large Series (Low&Medium pressure)	FAD		Pressure		Engine model	Dimensional Date(mm)
	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model						with tow bar	without tow bar
MDS900S-14.2/10.5	25.1	896	14.2	205.9	6LTAA8.9	5300	4200	2100	2630	5280
	25.2	900	10.5	152.25
MDS910S-14	25.6	914	14	203	6LTAA8.9	5300	4200	2100	2630	5280
MDS970S-10	27.2	971	10	145	QSL8.9	5300	4200	2100	2630	5280
MDS1011S-8.6	28.3	1011	8.6	124.7	QSL8.9	5300	4200	2100	2630	5280
MDS1054S-12	29.5	1054	12	174	QSL8.9	5300	4200	2100	2630	5280
MDS1250S-8.6	35	1250	8.6	124.7	QSL8.9	5300	4200	2100	2630	5280
MDS1400S-13	40	1400	13	188.5	QSZ13	6200	4700	2100	2630	5800
MDS1600S-10.3	45	1600	10.3	149.35	QSZ13	6200	4700	2100	2630	5800
MDS1785S-13	50	1785	13	188.5	QSZ13	6200	4700	2100	2630	5800
MDS2140S-10	60	2142	10	145	QSZ14	7400	5400	2230	2630	8400
Large Series (Medium&High pressure)
Large Series (Medium&High pressure)	FAD		Pressure		Engine model	Dimensional Date(mm)
	m3/min	cfm	Bar	psig		length		width	height	weight(kg)
model						with tow bar	without tow bar
MDS900S-20	25.3	904	20	290	QSM11	5300	4200	2100	2630	5800
MDS960S-18	26.9	961	18	261	QSM11	5300	4200	2100	2630	5800
MDS1000S-35	28.2	1000	35	507.5	QSZ13	6200	4700	2100	2630	7200
MDS1089S-25	30.5	1089	25	362.5	QSZ13	6200	4700	2100	2630	7200
MDS1200S-24	33.6	1200	24	348	QSZ13	6200	4700	2100	2630	7200
MDS1250S-21	35	1250	21	304.5	QSZ13	6200	4700	2100	2630	7200
MDS1250S-25	35	1250	25	362.5	QSZ13	6200	4700	2100	2630	7200
MDS1250S-30	35	1250	30	435	WP17G770E302	6200	4700	2100	2630	7800
MDS1250S-35	35	1250	35	507.5	WP17G770E302	6200	4700	2100	2630	7800
MDS1250S-40	35	1250	40	580	WP17G770E302	6200	4700	2100	2630	7800
MDS1428S-18	40	1428	18	261	QSZ13	6200	4700	2100	2630	7200
MDS1428S-35	40	1428	35	507.5	TAD1643VE-B	7400	5500	2180	2650	10000
MDS1428S-40	40	1428	40	580	QSK19	7400	5500	2180	2650	10000
MDS1600S-25	44.8	1600	25	362.5	WP17G770E302	7400	5500	2180	2650	10000

GTL Air compressor test system

Xiamen GTL Power System Co.,Ltd established in 2009,is a professional power generation solutions and supplier located in Xiamen of China,we engaged in the research,development, production,sales and service of Industrial diesel generator,Mobile diesel generator,Pump diesel generator,Gas generator,Air Compressor and Light towers. The Generators we provide can be both in Open skid,weather proof and Soundproof,power range from 5 kw to 4000 kw, The Gas generator can range from 12 kw to 1500 kw, The Air Compressor range from 55 CFM to 1600 CFM,maximum 34.5 bar, The Light towers were designed to offer the widest choice,multiple solutions of lamps with metal halide floodlight and LED lamp to satisfy different application,additionally,it is totally customizable. GTL focus on Client,guide all their efforts and have a team always available for all situations,the product has the advantages of Low noise,Low vibration,easy operation and reliable performance,all product conform to CE and ISO 9001 standard. With 12 years experience,GTL Present in over 50 countries,spreading all over 5 continents,it is flexibility and perfectly able to manufacture from the standard product to special projects,such as Oil & Gas plan,Mining plan,power plan,construction and engineering,that require a higher complexity in its engineering and conception,based on this,GTL aspires to be china's Atlas copco to strive for customer's successful.

---
