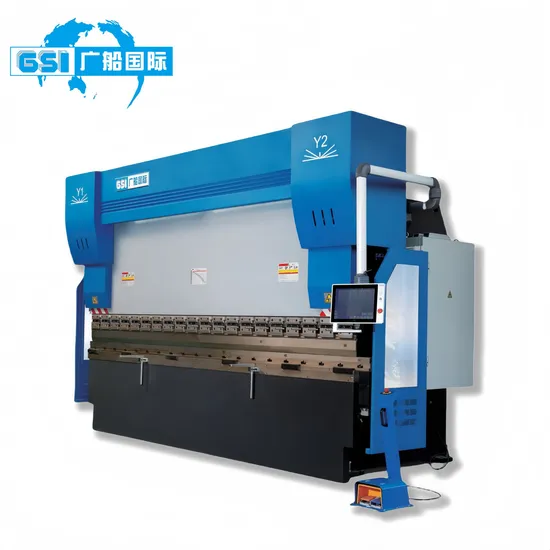

High Efficiency Double Servo Pump CNC Press Brake Machine Tool Bending Machine

Product Description

WPE Series Double Servo Pump CNC Bending Machine
High speed, high efficiency, fast response speed, with a 30% performance improvement.
The on-demand oil supply method reduces overflow and saves about 60% energy.
Ultra high precision, with positioning accuracy of 0.005mm.
Ultra low thermal energy loss, continuous working temperature rise not exceeding 15 degrees.
When stationary, it consumes very little power and is quiet.
Stadard CNC system Delem DA-53T. Optional system Cybtouch 8PS, Cybtouch 12PS, Delem DA-66T.
Double Servo Motors
Product Structure
Mechanical Deflection Compensation Device
High Quality Press Toolings
Front Supportor Bracket
CNC system Delem DA-53T (Standard)
CNC System (Optional)
Main Technical Parameters of WPE Series Double Servo Pump Press Brake

No.	Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slide Stroke (mm)	Opening Height (mm)	Main Motor Power(kw)	Back Gauge Operating Range (mm	Speed			Overall Dimension			Weight (kg)
										Approaching (mm/s)	Working (mm/s)	Return (mm/s)	L(mm)	W(mm)	H(mm)
1	WP63/2500E	630	2500	2000	320	160	450	2×3.8	500	260	20	260	3100	1500	2600	5500
2	WP80/2500E	800	2500	2000	400	200	470	2×3.8	500	260	19	260	3100	1650	2650	6000
3	WP100/2500E	1000	2500	2000	400	250	525	2×5.7	500	240	16	240	3100	1650	2650	7200
4	WP100/3200E	100	3200	2700	400	250	525	2×5.7	500	240	16	240	3800	1650	2750	8000
5	WP100/4000E	100	4000	3500	400	250	525	2×5.7	500	240	16	240	4600	1650	2800	9000
6	WP125/3200E	1250	3200	2700	400	250	525	2×5.7	500	230	16	230	3800	1700	2750	9000
7	WP125/4000E	1250	4000	3500	400	250	525	2×5.7	500	230	16	230	4600	1700	2800	10000
8	WP160/3200E	1600	3200	2700	400	250	525	2×5.7	500	220	16	220	3800	180	2800	9500
9	WP160/4000E	1600	4000	3500	400	250	525	2×5.7	500	220	16	220	4600	180	2850	11500
10	WP160/5000E	1600	5000	4100	400	250	525	2×5.7	500	220	16	220	5600	1800	3000	13000
11	WP160/6000E	1600	6000	5100	400	250	525	2×5.7	500	220	16	220	6600	180	3200	15500
12	WP200/3200E	2000	3200	2700	400	250	550	2×11	500	180	14	180	380	1800	2850	12000
13	WP200/4000E	2000	4000	3300	400	250	550	2×11	500	180	14	180	4600	1800	2900	14000
14	WP200/5000E	2000	5000	4100	400	250	550	2×11	500	180	14	180	5600	1800	3100	15500
15	WP200/6000E	2000	6000	5100	400	250	550	2×11	500	180	14	180	6600	1800	3300	18000

View more products , pls click here
https://gsi--tfm.en.made-in-china.com/product-list-1.html
Company Profile
Guangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After more than 40 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.
Workshop View
Our Equipment
Our Team
Qualifications and Honors
Technology Research and Development
Shipment and Delivery
FAQ 1. Q: Are you a factory or a trading company? A: Guangdong GSI Elevator Electromechanical Equipment Ltd is committed to the R&D, production and sales of press brake, shearing machine, grooving machine and elevator.2. Q: How to get a accurate quotation from you ? A: Please provide us with details of material and the max length you need.You can also send us the workpiece drawing ,and we will choose the most suitable machine and quote for you.3. Q: What's the payment terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment.4. Q: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set )5. Q: Can you provide customized machine and tool? A: Yes,we can design and manufacture according to your specific requirements.6. Q: How do you guarantee your quality? A: GSI have nearly 40 years of manufacturing experience. We are one of the earlist domestic enterprises producing hydraulic press brake and hydraulic shearing machine. We have more than 100 patented technologies and pass ISO9001:2015 quality management system. Our products have been exported to all over the word.7. Q: Where is your factory located? How can I visit there? A : Our factory is located in Zhongshan City ,Guandong Province, China. You could take train to Zhongshan railway station or Nanlang railway station, and then we could pick you up to our fatory from railway station. You are warmly welcomed to visit us.

---
