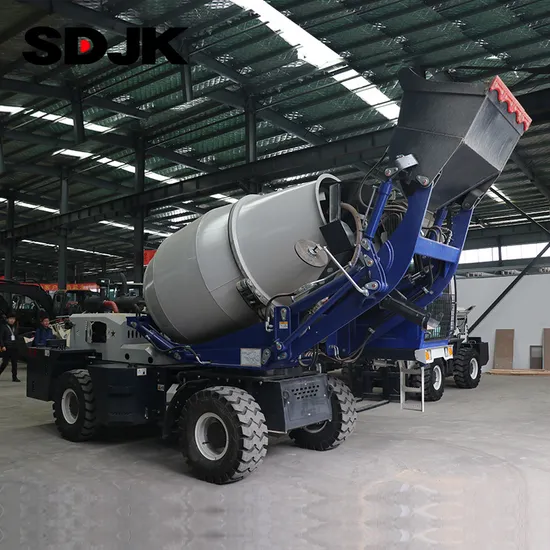

Small Selfloading Concrete Mixer Truck 1.2m3 - 4m3

Product Description

Small Selfloading Concrete Mixer Truck 1.2m3 - 4m3
The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
2 CBM yield JKM-20 Self Loading Concrete Mixer Truck

Model	JKM-20
Mixing Drum
Mixing Capacity	2 m³
Geometrical Capacity	3 m³
Concrete Output	2m³/batch, 8m³/h
Drum Rotating Speed	18 rpm
Drum Rotating Angle	270°
Engine
Model
Type	In-line, 4-Cylinder, 4-Stroke, Turbo Charged,Water Cooled
Rated Power	78 KW
Emission Standard	Euro II
Loading Bucket & Discharge Chute
Loading Bucket Capacity	0.6 m³
Loading Times to Full Drum	5 Times
Discharge chute	2 Sets
	With Extender
	Rotation angle range 90°, manual shank
Water System
Max. Water suction Volume	250L/min. (Self-priming electronic water pump)
Water tank Volume	2x250 L
Mixer
Max. Travel Speed	30 km/h
Gradeability	30°
Min. Turning Radius	5300 mm
Operating Weight	5600 kg
Max. Load	4700kg
Max. Gross Weight	10300 kg
Overall Dimension (L×W×H)	7300*2650*3750mm
Fuel Tank Volume	75 L
Total Hydraulic System Capacity	75 L
Oil Tank Volume	16 L

1.JKM-20 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture.
2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively.
5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.
If this model can not meet your work need, We also have other models:
1.5CBM-JKM-15 , 2CBM-JKM-20 , 2.6CBM-JKM-26 ,3.5CBM-JKM-35 ,4CBM-JKM-40
Welcome Contact us: contact us for more details.
If this model can not meet your work need, We also have other models:
1.5CBM-JKM-15 , 2CBM-JKM-20 , 2.6CBM-JKM-26 ,3.5CBM-JKM-35 ,4CBM-JKM-40
Welcome Contact us: contact us for more details.

---
