China Factory Good Price Universal Cylindrical External Lapping Machine for Outer Grinder

US$17,900.00-26,100.00 1 Piece (MOQ)

Basic Info.

Model NO.
M1320/750
Type
External Grinding Machine
Processing Object
Cylinder
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
ISO 9001
Condition
New
Max. Work Diameter
200mm
Max. Workpiece Load
50kg
Max. Workpiece Length
750mm
Center Height
140mm
Distance Between Centers
520mm
Spindle Motor Power
3kw
Grinding Wheel Speed
1820rpm
Overall Dimension
2370*1400*1250mm
Transport Package
Ship/Train
Specification
3200kg
Trademark
SNALPO
Origin
China
HS Code
8460291200
Production Capacity
1000pieces/Year

Product Description

Product Description
Product Features
1. This machine tool is suitable for grinding the outer circle, inner circle, and end face of cylinders and cones of small and medium-sized parts.
2. The machine tool workbench, head frame, grinding wheel frame and other components can all rotate at a certain angle.
3. The head frame adopts mechanical stepwise speed regulation, divided into six levels.
4. The grinding wheel holder adopts a three piece tile dynamic pressure bearing structure, with high rotation accuracy and low temperature.
5. The tailstock adopts a hydraulic telescopic sleeve structure.
6. The movement of the workbench and the movement of the grinding wheel holder can be either hydraulic or manual.


Product Parameters
Items M1320/500 M1320/750 Unit
Grinding diameter Φ5-Φ200 Φ5-Φ200 mm
Max. grinding length 500 750 mm
Center height 140 140 mm
Distance between centers 520 770 mm
Max. loading 50 50 kg
Workbench rotation angle -5.5~+7.5 -5.5~+7.5 °
Grinding wheel size Φ400*50 Φ400*50 mm
Spindle motor power 3 3 kw
Total power 5.2 5.2 kw
Grinding wheel speed 1820 1820 rpm
Net weight 2500 2800 kg
Gross weight 2800 3200 kg
Overall dimension 1900×1400×1250 2370×1400×1250 mm
Packaging dimension 2080×1800×1860 2720×1800×1860 mm
Accuracy Roundness 0.0015 0.0015 mm
Cylindricity 0.003 0.003 mm
Roughness Ra0.32 Ra0.32 um

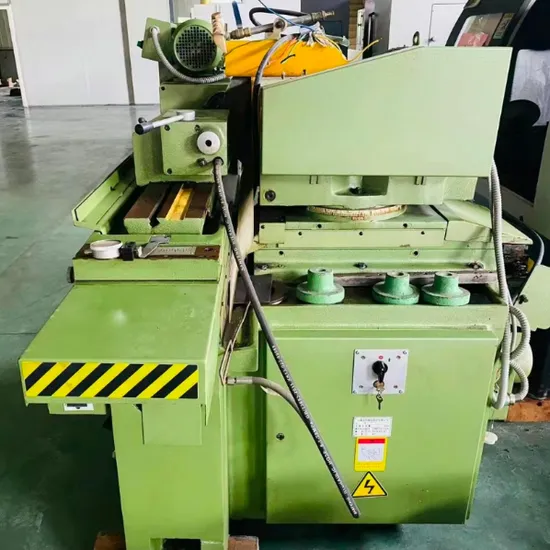

Detailed Photos

Work Piece
