Factory Price High-Performance Woodworking CNC Router Machine with 4 Heads for Precision Making

Product Description

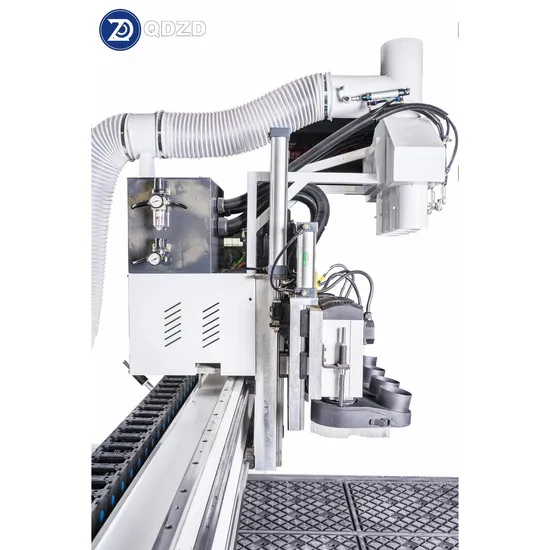

ZD1325-4 CNC ROUTER WITH 4 HEADS
The table top is double layer vacuum adsorption table, which can strongly adsorb materials of different areas. The small plates are processed without displacement, the processing surface is smooth, and the plate size is accurate. With instant adsorption and instant release functions.
Automatic oil filling, automatic oiling according to time setting, ensuring lubrication of the slider screw guide rail and prolonging service life.
Taiwan high-precision square linear guide, high precision, long service life, large contact surface, strong load carrying capacity, and the use of vertical rail technology can better ensure the stability of operation.
Automatic tool calibrator
Gantry supports, high strength, minimal vibration. The gantry supports are precision machined from cast iron tooling plate. The cast iron support has inherent vibration dampening characteristics while giving rigid support to the gantry tube.
WEIHONG/SYNTEC intelligent control system are optional.
Specification:

Model	ZD1325-4 Process CNC router with 4 heads
Table size	1300*2530mm
Working travel	1300*2500*200mm
Unload speed	55000mm/min(MAX)
Working speed	13000/min(MAX)
Repeat positioning accuracy	±0.05 mm
Compatible software	Artcam,type3,CAD,CDR etc.
Instruction code	Standard G code, u00, mmg. plt
Operating environment	Windows, 9e/2000) XP/WIN.7 32
Main motor	6+4.5*3kw cc spindle, air cooling
Machine body material	Overall steel structure, thickened bed
Control system	Weihong NK260 /SYNTEC FC
Reducer	Japanese SHIMPO
Driver motor	XYZ three-axis adopts Taiwan Delta servo motor 1kw and supporting driver
Transfer method	XY axis high precision helical rack drive, Wuxi XINYUE, Z-axis Taiwan TBI screw drive
Frequency converter	Shanghai Fuling Inverter
Guide rail	Taiwan imported straight square rail CSK 25, or Taiwan HIWIN
Maintenance	With automatic oil filling system, lubrication slider and guide rail for long-term use
Dust collector	Double bags, high power vacuum cleaner

Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES

CERTIFICATE

PAYMENT AND LOGISTICS
TOP RATED
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.

---
