Customize Automatic Extrusion Blow Moulding Machine for Hand Sanitizer Bottles

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
ZQD-5L
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Engineers Available to Service Machinery Overseas
Certificates
CE,ISO9001:2008
Number of Station
Double Station
Max Volume
5 Liter Container
Products Output
750X2 PCS/Hr
Auto Systems
Fully Automatic
Delivery Date
50 Days
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
General Packing
Specification
Max: 5 Litre
Trademark
ZQ
Origin
Huangyan, China
HS Code
8477300000
Production Capacity
50 Sets/Month

Product Description

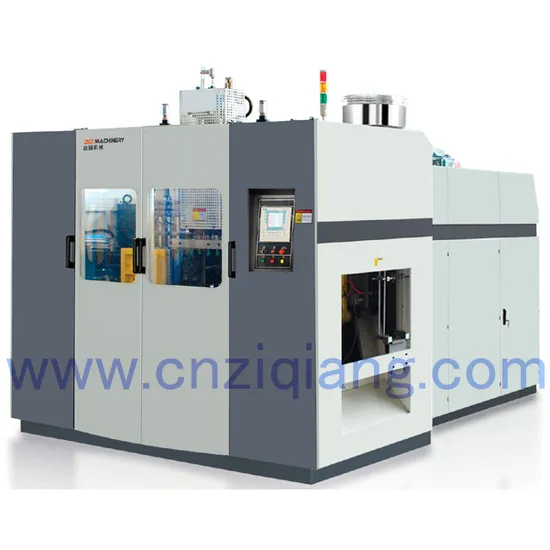

Customize Automatic Extrusion Blow Moulding Machine for Hand Sanitizer bottles
The 2L-16L double station blow moulding machine is different from the single station machine in that it has one additional station with high-precision linear guide, covering four major series of ZQD-2L, ZQD-5L, ZQD-10L and ZQD-16L. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, and PA.
The largest capacity of the product can be 10L, and its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production.
Extrusion Blow Moulding Machine,Setting:
Clamping------------Double station+Hight-precision guide+large arm cylinder axle
Extrusion system--Hard gear surface reducer+Japan inverter
Die system----------Central-incoming extrusion die with special steel
Hydraulic system--Japan hydraulic valve seal and proportional control
Control system----Japan PLC+Imported HMI+PLC automatic
Equipment information.
Specification
ZQD-2L ZQD-5L ZQD-10L ZQD-16L
Material
PE\PP^ PE\PP^ PE\PP^ PE\PP^
Max.container capacity L 2 5 10 16
Number of die set 1\2\3\4 1\2\3\4 1\2\3\4 1\2\3\4
Output pcs/hr 950×2 750×2 700×2 600×2
Machine Dimension m 2.7×2.0×2.5 3.4×2.2×2.6 3.9×2.3×3 4.9×4×3.1
Total weight ton 4 6.5 9.5 10
Accumulator head
ZQD-2L ZQD-5L ZQD-10L ZQD-16L
Number of die heating zone 3 3 3 4
Power of die heating KW 4.2 5.8 6-7 6-7
Max die-pin diameter mm 60 80 140 140
Center distance of twin-die mm 130 160 240 260
Center distance of tri-die mm 85 110 160 180
Center distance of four-die mm 65 85 120 130
Clamping Unit
ZQD-2L ZQD-5L ZQD-10L ZQD-16L
Clamping force KN 38 70 110 155
platen opening stroke mm 135-370 145-510 230-600 230-600
platen size mm 280×380 320×390 450×490 500×490
Max mould size mm 300×320 350×370 520×500 600×500
Mould thickness mm 135-210 155-300 235-380 235-380
Extruder Unit
ZQD-2L ZQD-5L ZQD-10L ZQD-16L
Screw diameter mm 60 70 90 90
Screw L/D ratio L/D 24:1 24:1 25:1 25:1
Extruding Volume Kg/hr 60-80 100-120 130-160 130-160
Number of heating zone zone 3 3 4 4
Extruder heating power KW 5-6.6 6-8.2 8.2-9.3 8.2-9.3
Extruder driving power KW 15-18.5 22-37 37-45 37-45

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
