Factory Price Outdoor 96 144 Core Fiber Optic Cable

Product Description

Product Description

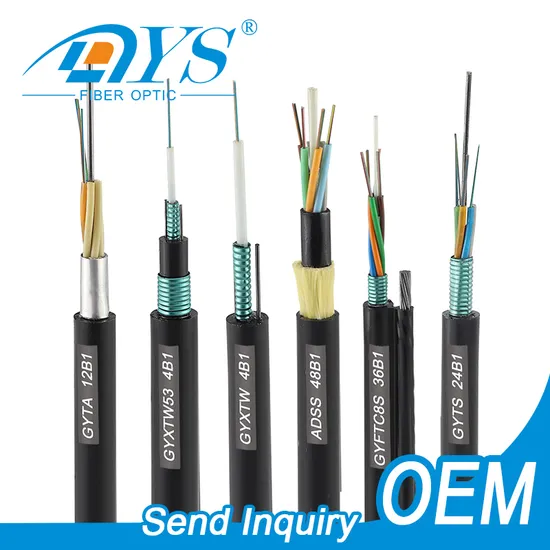

Outdoor 12 24 32 48 72 96 144 Core Fiber Optic Cable
Description
ADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics Filled with a water-blockingfilling compound, the tube is stranded around FRP as a non-metallic central strength member into compact andcircular cable core ADSS cables are ideal for outside plant aerial applications, the lightweight cable andall-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.
Technical parameters

Cable type	OD(mm)	NominalWeight(kg/km)	tensile strength(N)		Crush Resistance(N/100MM)		Bending Radius(mm)
			Short-term	Long-term	Short-term	Long-term	Dynamic	Static
ADSS-2~48Xn	12.0±0.5	140.0	3600	1200	1000	500	20D	15D
ADSS-96Xn	14.0±0.5	165.0	3600	1200	1000	500	20D	15D
ADSS-144Xn	16.0±0.5	205.0	3600	1200	1000	500	20D	15D
Storage/Working temperature(ºC)			-40~+70

Description
GYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.
Technical parameters

Cable type	OD(mm)	NominalWeight(kg/km)	tensile strength(N)		Crush Resistance(N/100MM)		Bending Radius(mm)
			Short-term	Long-term	Short-term	Long-term	Dynamic	Static
GYTS-2~60Xn	10.5±0.5	88.0	1500	600	1000	300	20D	15D
GYTS-62~72Xn	11.5±0.5	102.0	1500	600	1000	300	20D	15D
GYTS-74~96Xn	13.0±0.5	130.0	1500	600	1000	300	20D	15D
GYTS-98~144Xn	15.5±0.5	156.0	1500	600	1000	300	20D	15D
Storage/Working temperature(ºC)			-40~+70

Description
GYTC8S is a typical outdoor use fiber optic cable for aerial applications. GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multi mode GYTC8S fiber cables from2-fiber type to 144-fiber type.
Technical parameters

Cable type	OD(mm)	NominalWeight(kg/km)	tensile strength(N)		Crush Resistance(N/100MM)		Bending Radius(mm)
			Short-term	Long-term	Short-term	Long-term	Dynamic	Static
GYTC8S-12~60Xn	(11.0±0.1)*(20.8±0.5)	212.0	4950	2500	2000	1000	20D	15D
GYTC8S-62~72Xn	(11.0±0.1)*(20.8±0.5)	248.0	4950	2500	2000	1000	20D	15D
GYTC8S-74~96Xn	(11.0±0.1)*(20.8±0.5)	285.0	4950	2500	2000	1000	20D	15D
GYTC8S-98~120Xn	(11.0±0.1)*(20.8±0.5)	332.0	4950	2500	2000	1000	20D	15D
GYTC8S-122~144Xn	(11.0±0.1)*(20.8±0.5)	397.0	4950	2500	2000	1000	20D	15D
Storage/Working temperature(ºC)			-40~+70

Description: The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides. Then the cable is completed with a black or white color LSZH sheath. Features: Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property Two parallel strength members ensure good performance of crush resistance to protect the fiber Simple structure, light weight and high practicability Novel flute design, easily strip and splice, simplify the installation and maintenance Low smoke, zero halogen and flame retardant sheath Simple structure, light weight and high practicability Application: Used in indoor cabling, especially used for FTTH Used as access building cable Fiber Characteristic:

Cable code	Fiber Count	Cable diameter mm	Cable weight Kg/km	Tensilse Strength Long/Short term N	Crush Resistance Long/Short term N	Bedning Radius Dynamic/Static mm
GJXFH-1	1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
GJXFH-2	2	(2.0±0.2)×(3.0±0.2)	8.5	30/60	300/1000	15/30
GJXFH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30
GJXH-1	1	(2.0±0.2)×(3.0±0.2)	9	30/60	300/1000	15/30
GJXH-2	2	(2.0±0.2)×(3.0±0.2)	9.5	30/60	300/1000	15/30
GJXH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30
