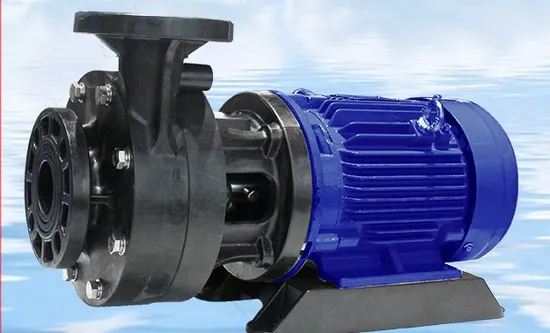

Self Priming Horizontal Centrifugal High Temperature Stainless Steel Chemical Pump for Chemical Industry

Product Description

we located in the famous pump city of zibo China,our city have 40 years of experience of produce pumps.full of types & quality ensured, Perfect industrial chain ,Fast production cycle,
We can customize and design various raw material (stainless steel/Aluminum/bronze)vacuum pumps and pumps according to the requirements of users.
our water pumps series main have:
XBD type axial flow deep well fire pump, diesel engine axial flow deep well fire pump, XBC diesel engine fire pump, hrhy constant pressure fire pump, HRG vertical pipeline pump, hrkt air conditioning pump, hrwf non negative pressure water supply complete set, HRDL vertical multi-stage fire pump, vertical single-stage fire pump series, vertical multi-stage fire pump series, variable flow constant pressure tangent pump series, horizontal multi-stage fire pump group and fire submersible pump group , fire stabilized water supply equipment, fire electrical control cabinet, series of fire water tanks (stainless steel, galvanized steel plate, etc.), HR DL DLR series vertical multi-stage centrifugal pump, HR ISL series Single-stage vertical pipeline pump, HR ISW Series Horizontal single-stage centrifugal pump, HR DBL series stainless steel vertical multi-stage pump, etc
product overview: the type of single stage chemical pump is a horizontal single stage single suction centrifugal pump, so compared with other horizontal single stage centrifugal pumps, the main suitable medium of this type of centrifugal pump is corrosive liquid. The seal type of water pump is mechanical seal. It is mainly applicable to chemical industry, smelting industry, etc. the material is stainless steel 304 or 316 material which is corrosion resistant.
The water pumps products are widely used in construction, fire protection, chemical industry, refrigeration, power generation, heat, mining, sewage treatment, agricultural irrigation and other industries
single machine chemical pump is mainly composed of three parts: pump head, motor and base. The pump head and motor are connected by coupling (three coupling was used before, and now it is used in two sections). The whole pump is fastened on the foundation by adding concrete and anchor bolts into the bottom plate. The pump head is mainly composed of pump body, pump cover, shaft, shaft sleeve, impeller, seal, suspension, intermediate support and other parts. Impeller, shaft sleeve, shaft, mechanical seal and other parts are vulnerable parts, which need to be inspected regularly and replaced to ensure the operation efficiency of IH single-stage chemical pump.
Relevant technical data

Items	Data
inlet diameter of pump	50mm
outlet diameter of pump	32mm
nominal diameter of pump impeller	200mm
Flow range	3.75m 3 / h-460m m3 / h
Lift range	: 4.4m-132m
Power range	: 0.55kw-90kw
Conveying medium	Sewage impurity
performance	Corrosion resistance
Pump shaft position	horizontal
material	Stainless steel

types:
Performance characteristics
1. Pump coaxial direct connection design saves space and is easy to install.
2. The mechanical seal is used as the standard configuration, which eliminates the leakage and is easy to maintain.
3. The operation is stable and the noise can be as low as 62 dB.
4. Uniform corrosion resistant design, bronze impeller improves pump corrosion resistance, stainless steel material is more suitable for more demanding applications.
impeller material: cast iron, Alumnium,bronze,stainless steel etc,
shell material: casting grey iro.
flow: 280m3/h; power: 185kw; temperature of air: 0--800 C;
sediment content of water: max 350g/m3, PH: 2---10;
motor for pumps material and structure:
our company located in ZIBO where famous hometown of water pump ,with a long history of producing water pump and many years of experience.we'll supply the best quality with cheaper price and accurately pump type for yo

---
